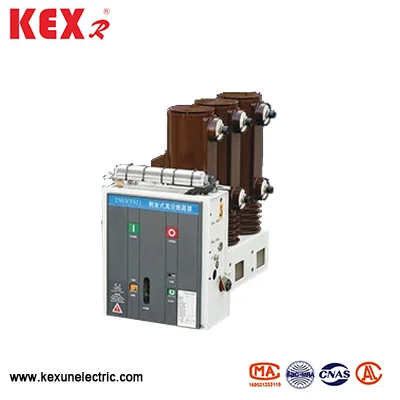

Side-mounted Umbratibus High Voltage Vacuum Circuit Breaker
In umbraticis High voltage Vacuum Circuit Breaker produci per Seres Factory KEXUN est maxime usus ad praesidium et imperium circuits. Est idoneam pro locis cum rated voltage of 12kv et frequency of 50Hz ubi crebris operationem vel circuitu current intermissione requiritur. Potest installed in certa switchgear et solebat solum.
Model: VS1
Notam: Kexr
Model: VS1
Notam: Kexr
● Structural characteres latus-mounted amet High voltage vacuum Circuit Breaker
▶ lateralis operationem mechanism
▶ epoxy resinae insulatas polus
▶ trinus, libero vere operating ratio
▶ front / tergo funem terminationes
● latus-mounted umbraticis excelsum voltage vacuo circuitu ruptor per condiciones
▶ ambientium temperatus rhoncus: et temperatus circum-circuli gradu umbraticis High voltage vacuo Circuit ruptor esse -15 ~ XL ℃
▶ Altitudinem, latus-mounted Umbratibus High voltage vacuo circuitu ruptorem esse installed minus M metris.
▶ relative humiditas: et cotidie mediocris non magis quam XCV%, menstrua mediocris non magis quam XC%, quotidie average of saturatioribus vapor pressura non plus quam 2.2 × 10-3MPA Mediocris.
▶ terraemotus intensionem: Minus quam VIII gradus
▶ loca absque ignis, CREPITUS, gravi pollutio, chemical corrosio et gravibus tremens.
● Technical parametri parte-mounted Umbratibus High Voltage vacuum Circuit Breaker
|
Item |
Unitas |
Notitia |
||||
|
Rated voltage |
KV |
12 |
||||
|
Current Rated |
A |
DCXXX ~ MCCL |
1250 |
1250 |
||
|
Rated Short Circuit conteram current |
In |
20 |
25 |
31.5 |
||
|
Rated Short Circuit claudendo current |
In |
50 |
63 |
80 |
||
|
Rated Peak resistite current |
In |
50 |
63 |
80 |
||
|
4 * Short Circuit resistere current (Pecco) |
In |
20 |
25 |
31.5 |
||
|
Rated insulate gradu |
Working resistere voltage |
KV |
XLII (XLVIII) |
|||
|
Impact resistere voltage |
LXXV (LXXXV) |
|||||
|
Rated Operating Sequence |
|
Break-0,3s-proxima-180s, prope |
||||
|
Mechanica vitae |
Tempus |
10000 |
||||
|
Rated Short-Circuit Current Interruptio |
Tempus |
50 |
||||
|
Rated foramen voltage of operating mechanism (DC) |
V |
110,220 |
||||
|
Contact Terminal |
mm |
XI ± I |
||||
|
Vertravel (Contact Spring compressio Longitudo) |
mm |
XXXV ± 0.5 |
||||
|
Tres-phase separationem et claudendo REPENTE tempore |
MS |
≤2 |
||||
|
Contact claudendo REPENTE tempore |
MS |
≤2 |
||||
|
Mediocris foramen celeritate |
M / S |
1.1 ± 0.2 |
||||
|
Mediocris claudendo celeritate |
M / S |
0.6 ± 0.2 |
||||
|
Tempus |
Max Operating voltage |
s |
≤0.05 |
|||
|
Min operating voltage |
≤0.08 |
|||||
|
Claudendo tempore |
s |
0.1 |
||||
|
Liceat gerunt cumulus crassitudine dynamic et stabilis contactus |
mm |
3 |
||||
