Photovoltaic coniunctas arca
Photovoltaic adiunctae buxum produci per KEXUN in Sina Factory est idoneam ad photovoltaic tandem potentia generationem ratio, quae suscipit momenti potestatem praesidium pars tandem inverter et potestatem elit. Hoc induit secundarium fulgur tutela, et tutela gradu est ip65, quod est usus ad velit installation in occursum in necessitatibus Waterproof, dustproof, ultraviolet praesidio et sal imbre corrosio.
Model: KXHLX
Notam: Kexr
Model: KXHLX
Notam: Kexr
● KXHLX Type photovoltaic adiunctae archa features
Internum structura photovoltaic adiunctae archa est simplex et patet, et wiring est tersus et rationabile. Princeps reliability et simplex sustentationem. Various potest accommodare velit murus-mounted ad varias dura environments. Praeter vexillum materiae et magnitudinum, quod potest esse customized secundum user scriptor requisita.
● Technical parametri KXHLX Type photovoltaic adiunctae Box

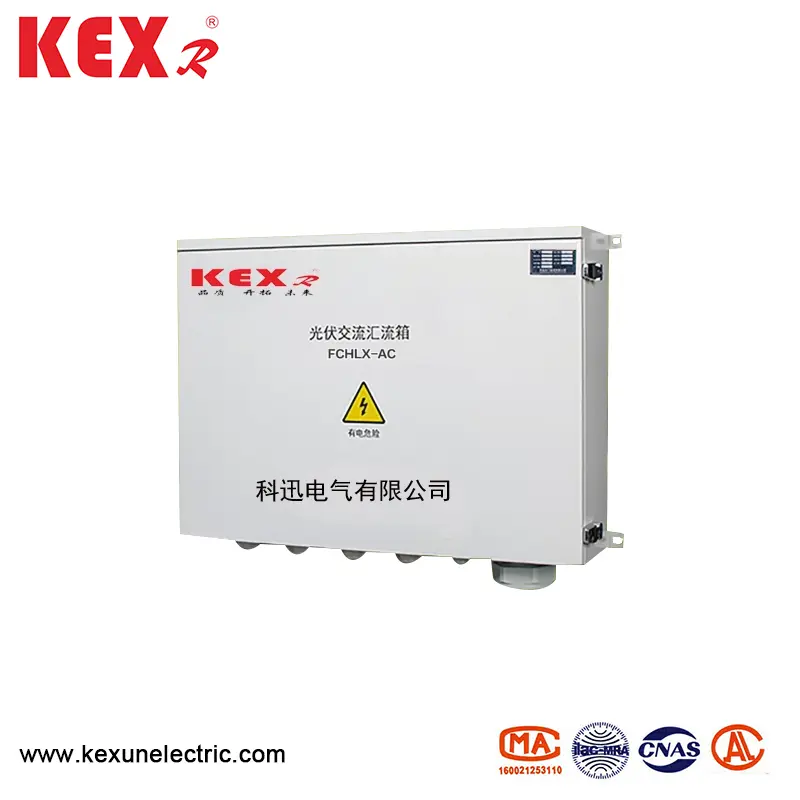

◆ AC Type photovoltaic coniunctas arca
|
Item |
KXHLX, AC4 |
KXHLX, AC4 |
KXHLX, ac8 |
|
Initus lineae |
I ~ IV |
V ~ VI |
VII ~ VIII |
|
Max input Voltage |
690v |
||
|
Lineas initus current |
0 ~ 100A |
||
|
Max output current |
250A |
400A |
630a |
|
Rated voltage |
480vac |
||
|
Voltage protegat gradu |
480vac |
||
|
Nominal Flow Capacity (VIII / 20μs) |
20KA (matching secundum elit requisita) |
||
|
Max fluxus capacitatem (VIII / 20μs) |
40ka (matching secundum elit requisita) |
||
|
RESPONSIO Tempus |
<25Ms |
||
|
Temperatus et humiditas |
Opus Temperature: -40 ~ LXXXV ℃, XCV%, no condensationem et mordax Gas |
||
|
Altitudo |
Minus quam 4000m |
||
|
Cabinet Material |
Hot Tread Galvanized Steel Plate / Aliquam Steel / Frigus Volled Steel Plate / Engineering Plastics |
||
|
Cabinet IP gradu |
Ip65 |
||
|
Cable Connection IP Degree |
Ip66 |
||
|
Cable Connection Dimensiones: W * H * D |
DCCC * DC * CC mm |
DCCC * DCCC * CC mm |
DCCC * M * CC mm |

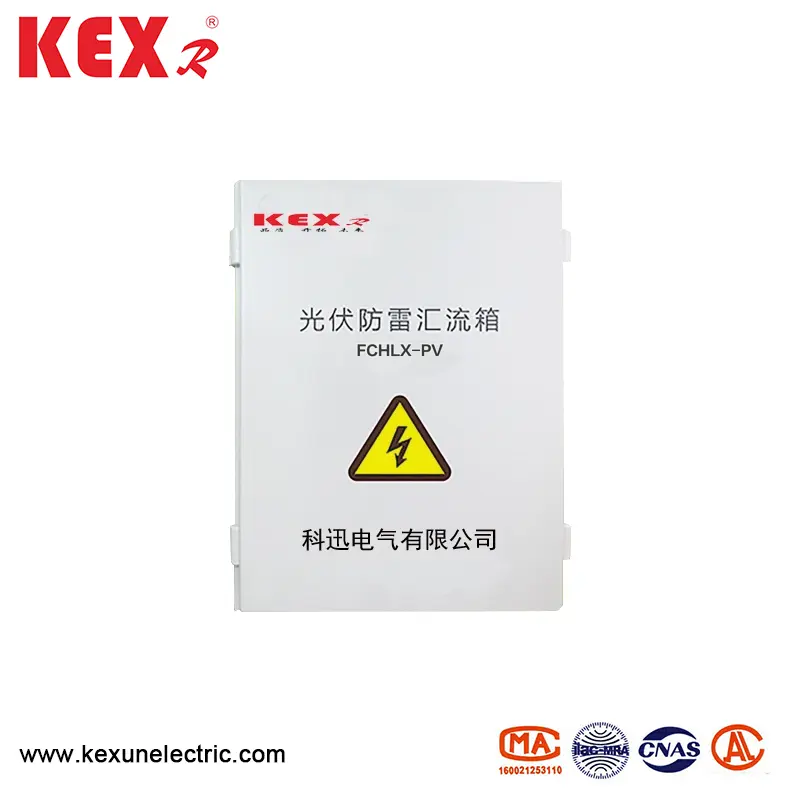

◆ DC type photovoltaic coniunctas arca
|
Item |
|
Buchhlx, Pv6 / II |
Buchhlx-Pv6 / III |
Buchhlx-Pv6 / IV |
|
Electrica modulo |
Max Ratio DC Voltage |
1000 |
1000 |
1000 |
|
Max per lineam initus current |
20A |
20A |
20A |
|
|
Max input lineae |
6 |
6 |
8 |
|
|
Max output switch current |
32A / 40a |
20A / 32a |
20A / 32a |
|
|
Inverter MPPT quantitas |
2 |
3 |
2 |
|
|
Output lineas |
2 |
3 |
2 |
|
|
Fulgur Donec |
Test Type |
Secundarium praesidium |
Secundarium praesidium |
Secundarium praesidium |
|
Nominal missionem current |
20KA |
20KA |
20KA |
|
|
Max fluxus current |
40ka |
40ka |
40ka |
|
|
Voltage protegat gradu |
3.8kv |
3.8kv |
3.8kv |
|
|
Maxime continua operantes voltage |
1050V |
1050V |
1050V |
|
|
Polos |
3p |
3p |
3p |
|
|
Structuram characters |
STABULUM |
|||
|
Fulgur praesidio characteres |
IP gradu |
Ip65 |
||
|
PRAETENDO |
DC Circuit Breaker / DC Rotary Disconnector |
|||
|
SMC4 IMPERVIUS Iungo |
vexillum configuratione |
|||
|
PV DC Fuse |
vexillum configuratione |
|||
|
PV DC Surge Donec fabrica |
vexillum configuratione |
|||
|
Monitoring Module |
N |
|||
|
Antireflection diode |
N |
|||
|
Box Material |
PVC |
|||
|
Install modus |
Murus Type Type |
|||
|
Opus temperatus |
-25 ~ LV ℃ |
|||
|
Altitudo |
2000m |
|||
|
Humidum |
0 XCV%, non-condensatio |
|||
|
Width * altitudo * profundum (mm) |
CD * CCC * CLX |
D * CD * CXC |
D * CD * CXC |
|
