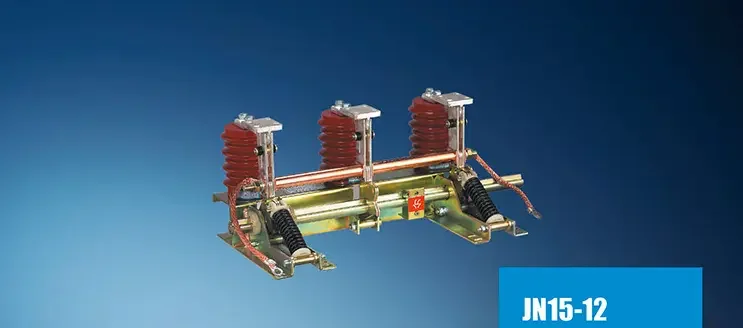

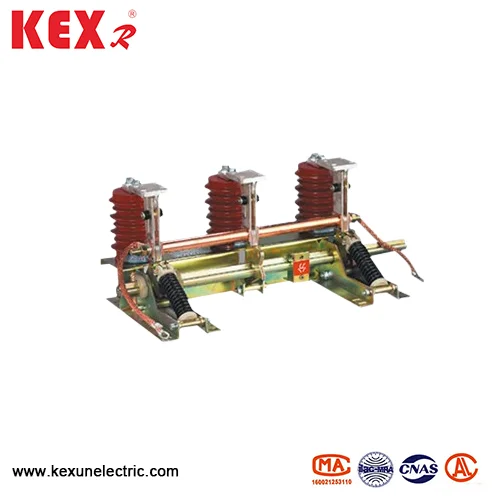

Jn15 Type Indoor HV Earthing Switch
Jn15 Type Umbraticis HV Earthing switch est a uber produci per Sina Factory KEXUN, quae pervenit ad domesticum provectus campester. , Apta potestate Systems cum AC 50Hz inferius 12kv, potest esse simul cum variis genera summus voltage switchgear, et potest etiam esse ut grounding tutela ad altus-voltage electrica apparatu sustentationem.
Model: Jn15
Notam: Kexr
Model: Jn15
Notam: Kexr
● Reference Signa
Et Jn15 Type Umbraticis HV Earthing Switch obvium habueris GB1985-2004 AC altus-voltage Disconrectors et Earthing Switches et Iec129 ac disconpors et Earthing switches

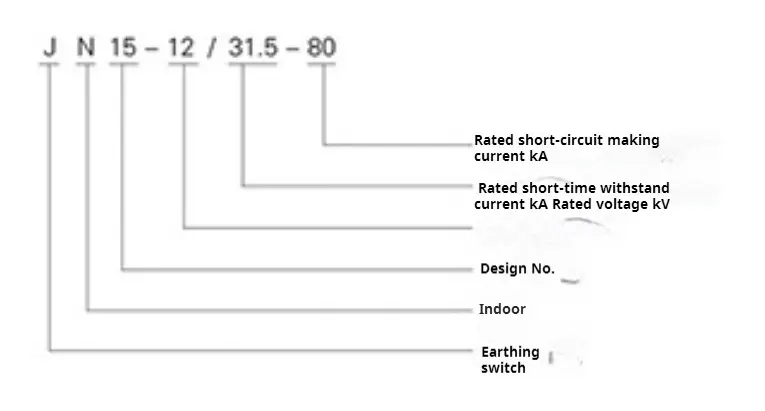

● Model Definition
● Jn15 Type Umbraticis HV Earthing Switch per environment conditionibus
◆ ambientium temperatus, temperatus circa Jn15 Type Indoor HV Earthing switch
Sit -25 ~ XL ℃
◆ altitudinis: et Jn15 Type Umbraticis HV Earthing transitum sit installed ad altitudinem minus quam 1000m.
◆ seismic facultatem: ≤8
◆ in circuitu caeli Jn15 Type Umbraticis HV Earthing switch sit liber a obvious pollutio ut corrosi, combustibilis Gas et aqua vapor et non esse crebris vibrationem.
● Technical parametri de JN15 Type Indoor HV Earthing Switch
|
Numerus |
Item |
Unitas |
Notitia |
|
|
1 |
Current Rated |
In |
12 |
|
|
2 |
Rated brevi-term resistent current |
In |
31.5 |
|
|
3 |
Rated Short Circuit permanens Tempus |
s |
4 |
|
|
4 |
Rated Short Circuit claudendo current |
In |
80 |
|
|
5 |
Rated Peak resistite current |
In |
80 |
|
|
6 |
Centroid procul |
mm |
210,230,250,275 |
|
|
7 |
Rated insulate gradu |
1min laboris resistere voltage |
KV |
42 |
|
Luminatione impetus sustinere voltage |
75 |
|||
