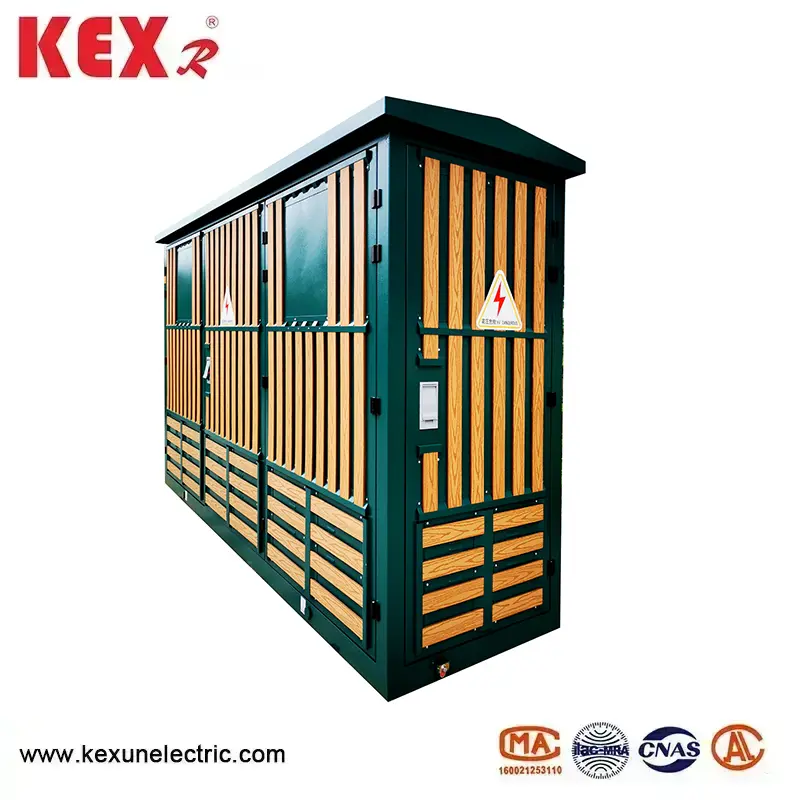

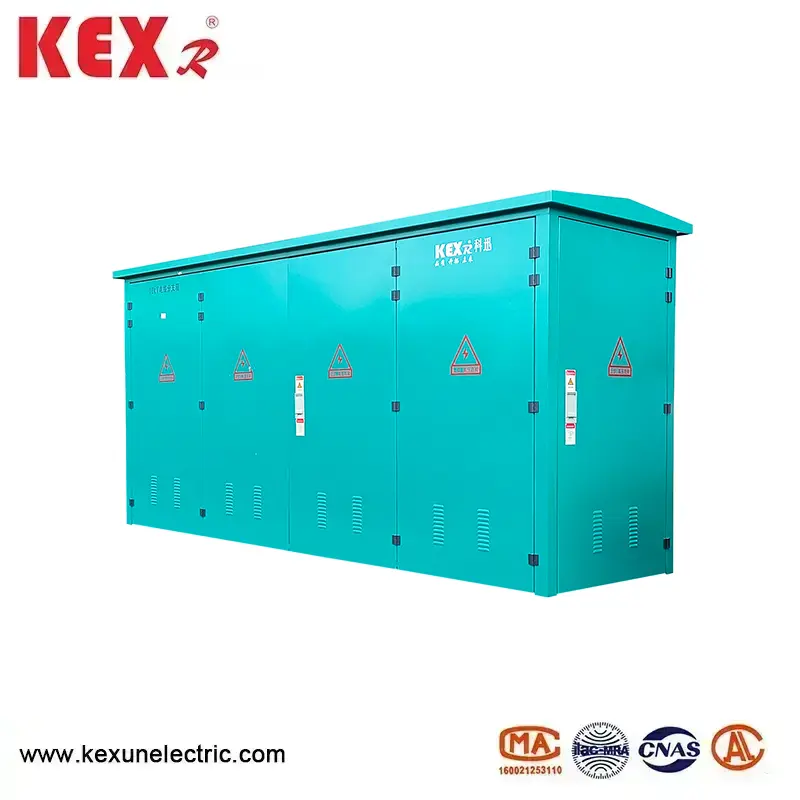

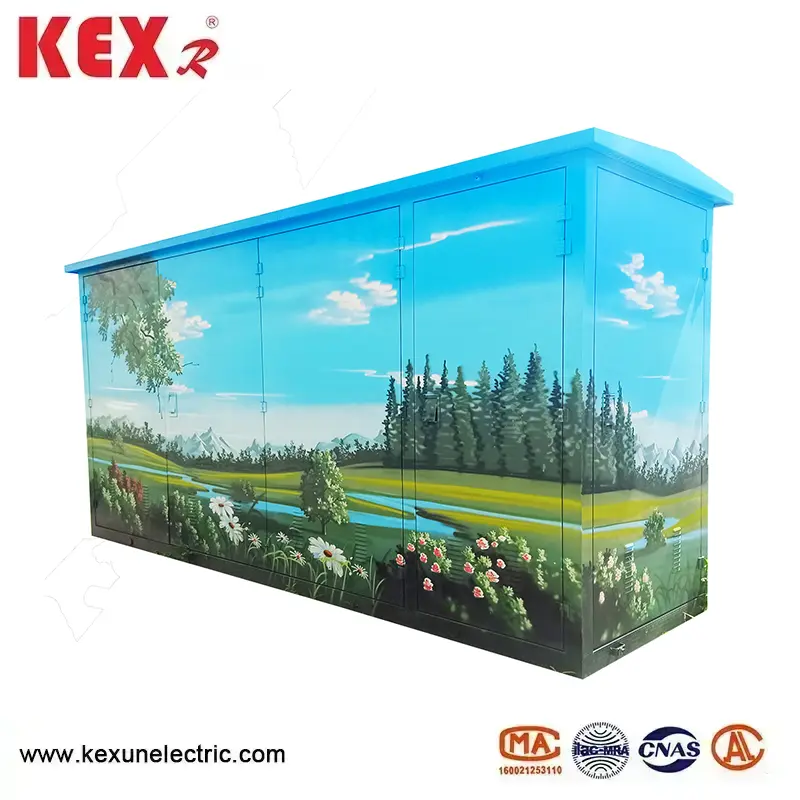

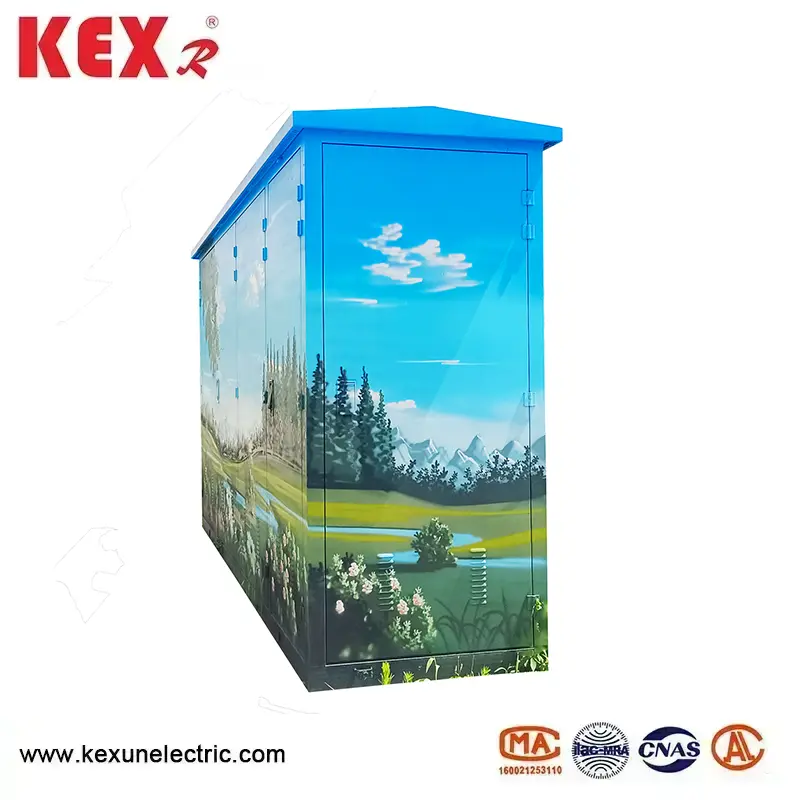

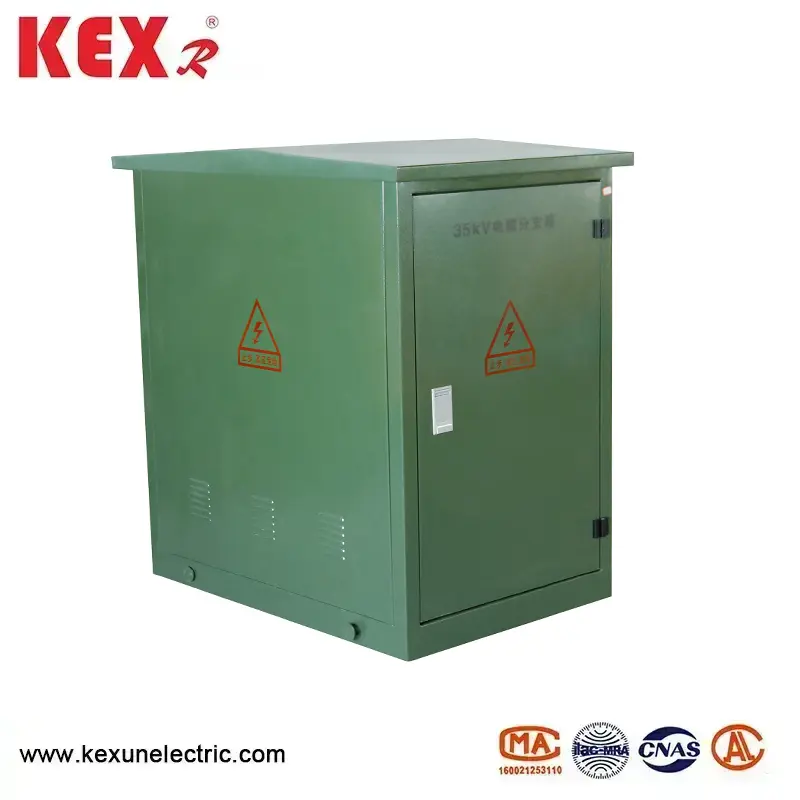

Insulated cable distributio arca archa
In recent years, the 24 kV Insulated Cable Distribution Box specially produced by Kexun factory in China has been widely used in power distribution system, which is characterized by two-way door opening, using wall bushing as the connecting bus bar, short length, clear cable arrangement, and no need for large-span crossing of three-core cables. Et funem COPULATOR solebat conformis ad Din47636 vexillum.
Model: 35kv
Notam: Kexr
Model: 35kv
Notam: Kexr
● Technical modularis 24kv insulatas cable distributio arca archa
|
Rated voltage |
24kv |
|
Current Rated |
630a |
|
Dynamic stabilis current |
50KA / 0.3s |
|
Calor stabilis current |
20KA / 0.3s |
|
1min working frequency sustinere voltage |
42kv |
|
XV min DC sustinere voltage |
LII KV |
|
Luminatione impetus sustinere voltage |
105kv |
|
Crusta IP gradu |
Ip33 |
● per condiciones ad 24kv insulatas cable distribution arca archa
Ambientium temperatus de 24kv cable terminum arca: -30 ~ XL ℃
Ventus Celeritate: equivalent ad 34m / S et Minus quam 700PA
Umor: et mediocris cotidiana relative humiditas non plus XCV%
Mediocris menstrua relative humiditas non plus XCV%
Shockproof, horizontali acceleratione non plus quam 0.4m / ², et verticalem accelerationem non plus quam 0.15M / S²
Inclinatio 24kv insulated cable distribution arca archa installation site: Minus quam III
Installation environment: De circum aerem non manifesto polluta abundant, combustibilis Gas, vapor aqua etc et institutionem situm non violenter vibrated.

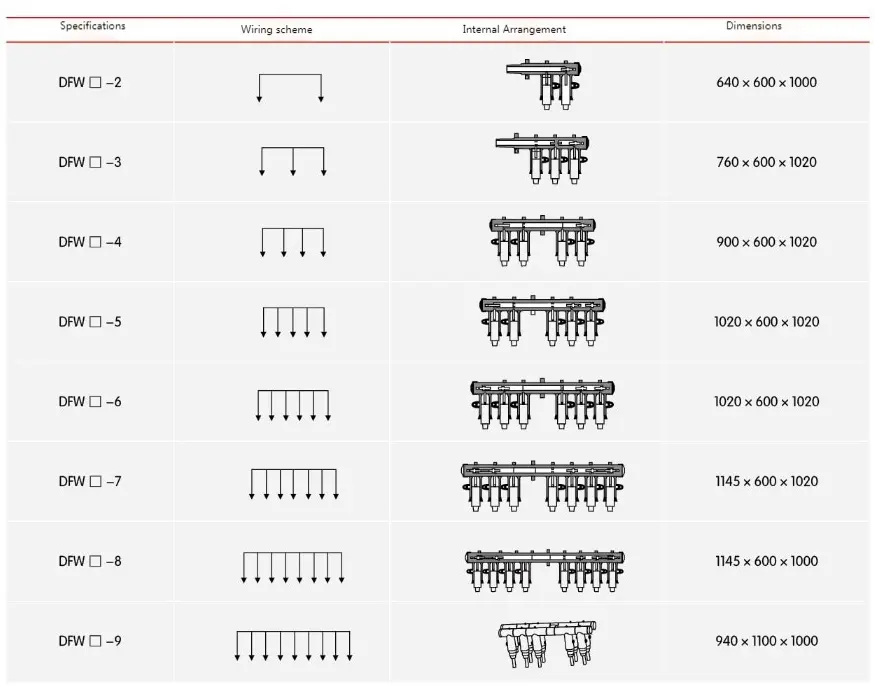

● Order Number Description de 24kv insulatas cable distributio arca archa
