General ad Nullam
General-ad Nullam, quod est produci a Sina manufacturer KEXUN Electric, est in electro commendata fabrica late in industriae imperium, familia appliances et automation systems, et potest control, calefacit (ut 12V DC et 24V DC).
Model: MK
Notam: Kexr
Model: MK
Notam: Kexr
● productum characteres de generali-ad Nullam
▶ MK Type General-ad Nullam habet parva magnitudine, lux pondere et altus sensibilitate et diu muneris vitae
▶ MK Type Generalis-ad Nullam potest providere II occidere et III sets (10a) de Contact Conversion
▶ Sostrum mounted
▶ MK Type Generalis-ad Nullam potest aequare indicator lucerna et doodie

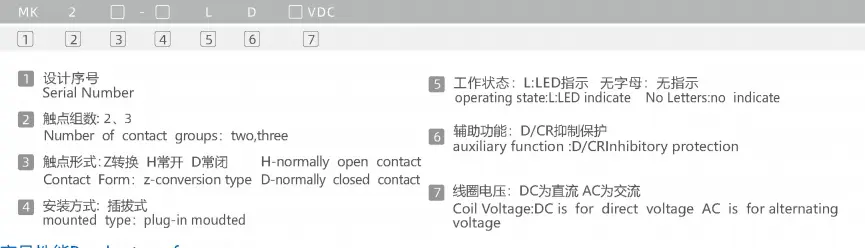

● Model significatione MK Type General-ad Nullam
● Din-Rail Power Nullam Product perficientur notitia mensa
|
Contact resistentia |
≤100mω |
|
Electrica vitae |
≥50000 |
|
Mechanica vitae |
≥1000000 |
|
Intentione coil |
DC: 6-20v ac: 6-380v |
|
SUCTUS Tempus |
≤2Ms |
|
Tempus release |
≤1Ms |
|
Inter idem polus contactus |
1000vac / 1min (Leakage Current 1ma) |
|
Inter Polar Contactus |
1500vac / 1min (Leakage Current 1ma) |
|
Inter contactum et coil |
2500VAC / 1min (Leakage Current 1ma) |
|
Nulla resistitur |
≥100mω (500VDC) |
|
Ambientium temperatus |
-25 ° C ~ LV ° F |
|
Ambientis humiditas |
XXXV% ~ LXXX% RH |
|
Atmosphaerica pressura |
LXXXVI ~ 106kpa |
|
Impact resistentia |
10G (Sine dimidium fluctuum legumina: 11ms) |
|
Vibratio resistentia |
X ~ 55Hz duplex amplitudine: 1.5mm |
|
Dimensio |
XXXV * XXXV * 35mm |
|
Pondus |
circa 75g |

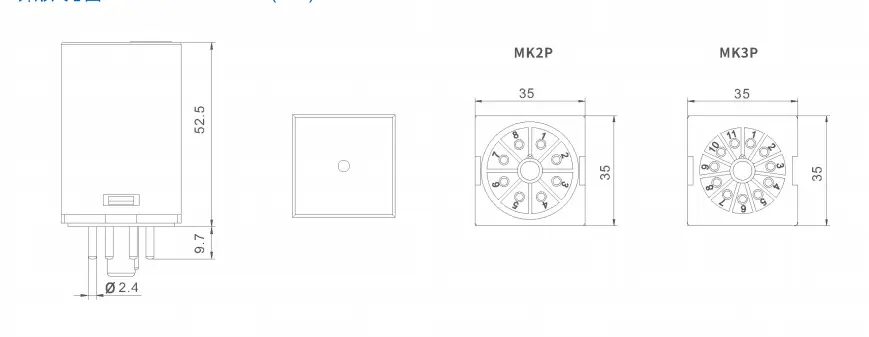

● Dimension de Din-Rail Power Nullam
