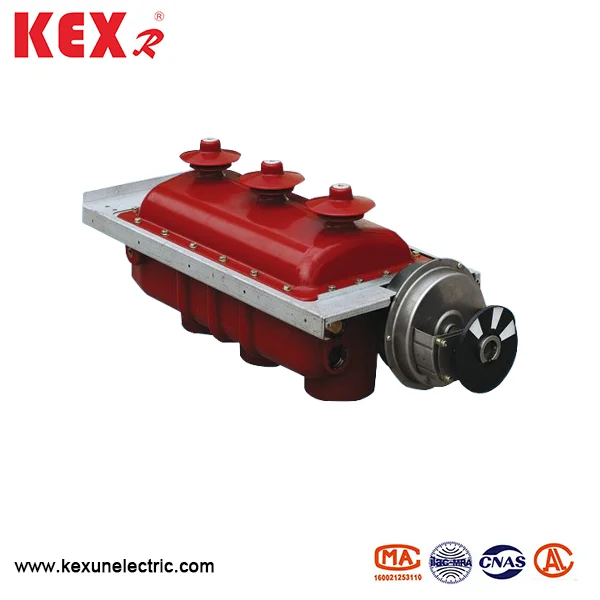

Flrn48-12D Type SF6 onus SWITCH
Et Flrn48-12D Type SF6 onere switch est a onus switch productum independenter developed by KEXUN in Sina Factory in MMVIII, quod est applicari ad xgn15-12sf6 Ring principalis unitas. Is est princeps oeconomia, salus et reliability, simplex structuram, flexibile operationem, reliable interlocking et convenient installation.
Model: Flrn48-12D
Notam: Kexr
Model: Flrn48-12D
Notam: Kexr

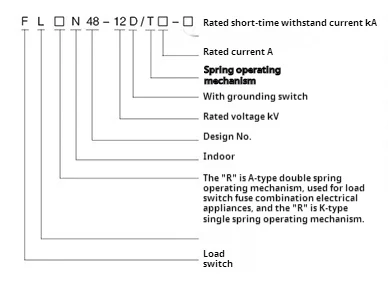

● Model Definition

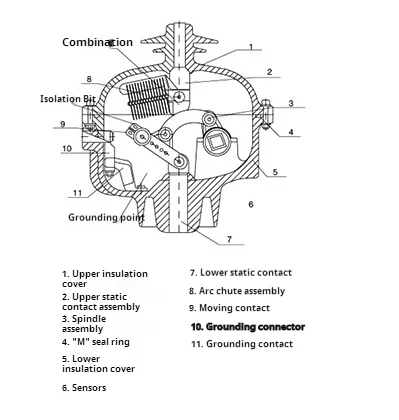

● structuram et principium
Pelagus circuitu et grounding circuitu de Flrn48-12D Type SF6 onus switch signati in insulating testa factum ex epoxy resinae per APGI processus, quae habet commoda boni velit et anti-pollutio boni inquisitionem perficientur et anti-pollutio boni et anti- environment. Insulating testa fit superioris insulating operimentum et inferiorem insulating operimentum, quod repleti SF6 Gas cum relativis 0.4bar pressione. Inferius insulating operculum adoptat loci tenues, muratas et crassitudine CREPITUS-probationem membranam mensuras, ut ut si casu accidentis, in pressura super overcerture SF6 Gas guttae post fractionis per salutem film et gas directe per solutionem ad tergum arcu ut personalis.
◆ occursum vexillum
IEC60265, IEC62271, GB3804, GB16926 etc ..
● per condiciones
◆ ambientium temperatus, temperatus circa flrn48-12d Type SF6 onus SWITCH
Sit -40 ~ XL ℃
◆ Umor: quod maximum mediocris relative humiditas est ≤ XCV% per diem et ≤ C% per mensis.
◆ altitudinis: et flrn48-12d Type SF6 onus switch erit installed ad altitudinem infra
2000m.
◆ seismic facultatem: ≤8
◆ in circuitu caeli sit liber ex obvious pollutio ut corrosi, combustibilis Gas et aqua vapor et non esse frequentes vim.
● Technical parametri de Flrn48-12D Type SF6 onus SWITCH
|
Item |
Unitas |
Flrn36-12D / T630-20 Type |
Flrn36-12D / 100-50 Type |
|
Rated voltage |
KV |
12 |
12 |
|
Rated frequency |
HZ |
50 |
50 |
|
Current Rated |
A |
630 |
100 |
|
1min potentia frequency resistere voltage interphase / fractura |
KV |
42/48 |
42/48 |
|
Fulgur impetus resistere voltage interphase / fractura |
KV |
75/85 |
75/85 |
|
V min 0gauge rated potentia frequency resistere voltage |
KV |
24 |
24 |
|
Rated scelerisque stabilitatem current III seconds / II seconds |
In |
20/20 |
20/20 |
|
Rated Dynamic stabilis current (Pecco) |
In |
50/50 |
50/50 |
|
Rated Short-Circuit claudendo current |
In |
50/50 |
125/50 |
|
Rated clausa-loop interpellandum current |
A |
630 |
|
|
Rated activae onus interpellandum current |
A |
630 |
|
|
Rated cable præcipiens solveret current |
A |
10 |
10 |
|
Rated Short-circuitu solveret current |
In |
|
50 |
|
Rated translatio current |
A |
|
1700 |
|
Fuse type |
|
|
Xrnt-12kv / 100a |
|
Fuse impulsum arcu navitas |
J |
|
I ± 0,5 |
|
Mechanica vitae |
Tempus |
5000/2000 |
3000/2000 |
|
Intervallum inter præcepit corporibus et relativum aere |
mm |
≥125 |
≥125 |
|
SF6 Gas pressura |
sera |
0.4 |
0.4 |
|
Synchronization et aperire et claudendo |
MS |
≤2 |
≤2 |
|
Pelagus Circuit resistentia |
infans |
≤65 |
≤65 |
