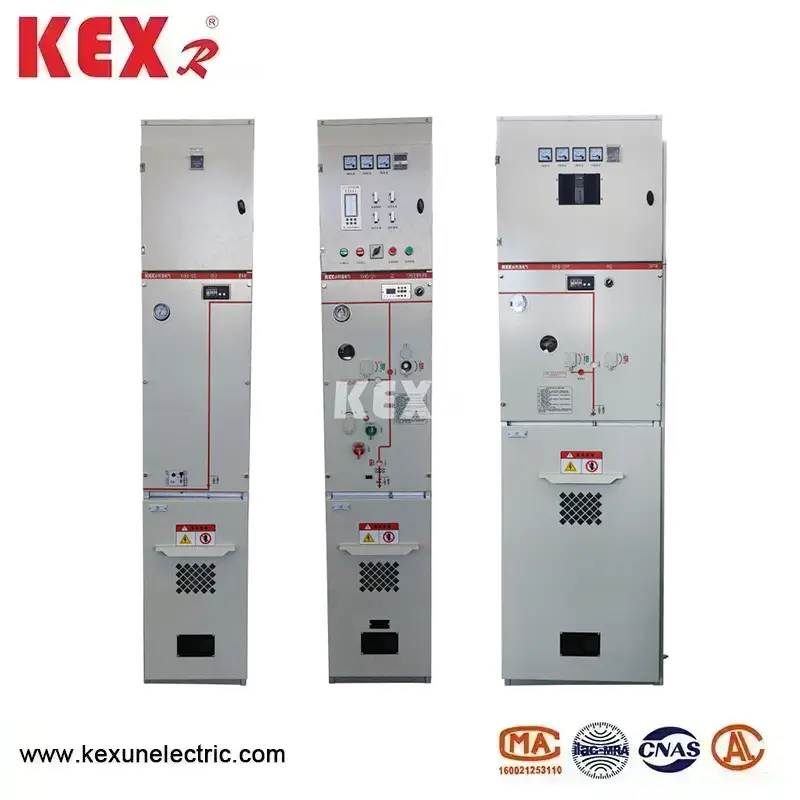

Environmental Friendly Gas Insulate Switchgear scrinium
Amice Environmental Gas Insulate Switchgear Cabinet producta per officinas Sinarum Kexun Electric Co.,Ltd habet proprietates simplicis structurae, operationis flexibilis, certae inter se et accommodatae institutionis, et maxime apta potentiae distributionis in locis residentialibus urbanis, substationibus secundariis, mutationibus stationum, cable ramorum capsularum, substationum capsularum, operationis flexibilis, certae inter se interclusae et opportunae institutionis, et aptissima potentiae distributio in urbanis locis residentialibus, parvae substationes secundariae, commutationes statio, funis ramorum, capsularum substationum, industrialium et fodiendi, inceptis, inceptis, insternendi, mercaturas, machinamenta, insolumenta, incepta, mercaturas, machinamenta, insternendi. cuniculis et aliis locis.
Exemplar: KXHB-12
Brand：KEXR
Exemplar: KXHB-12
Brand：KEXR

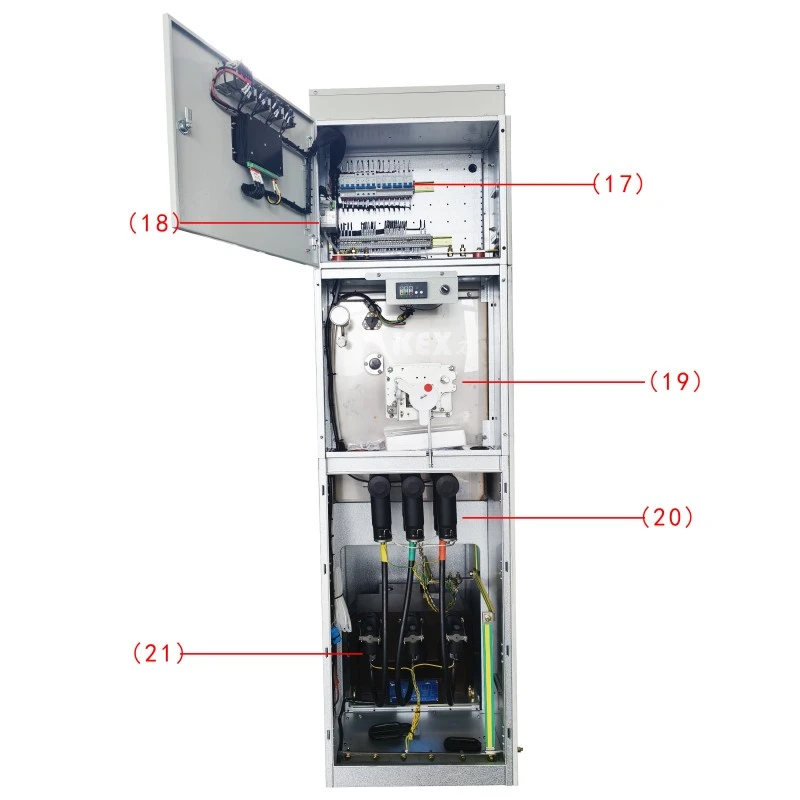

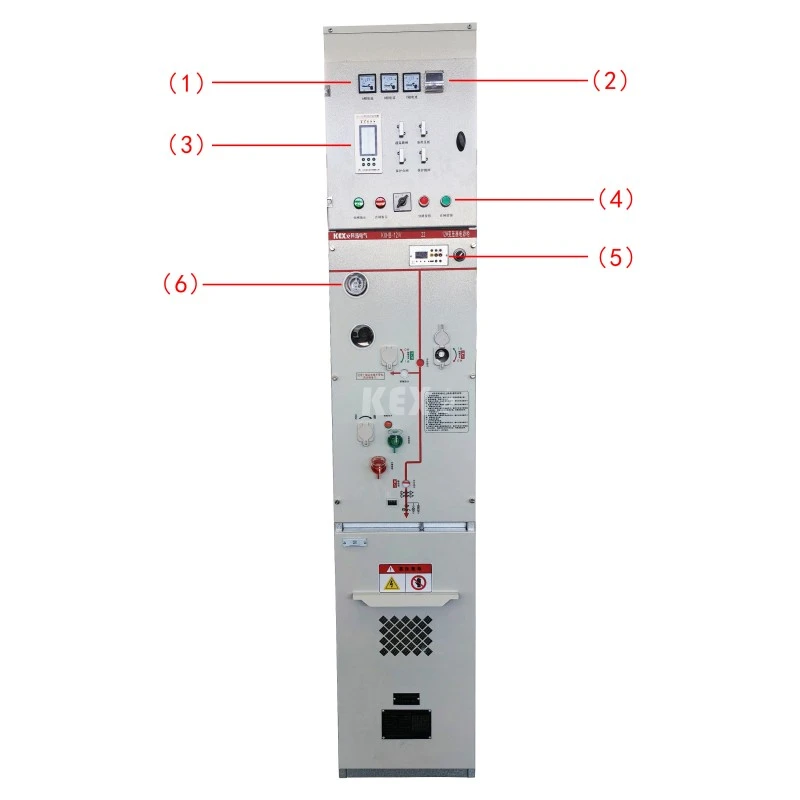

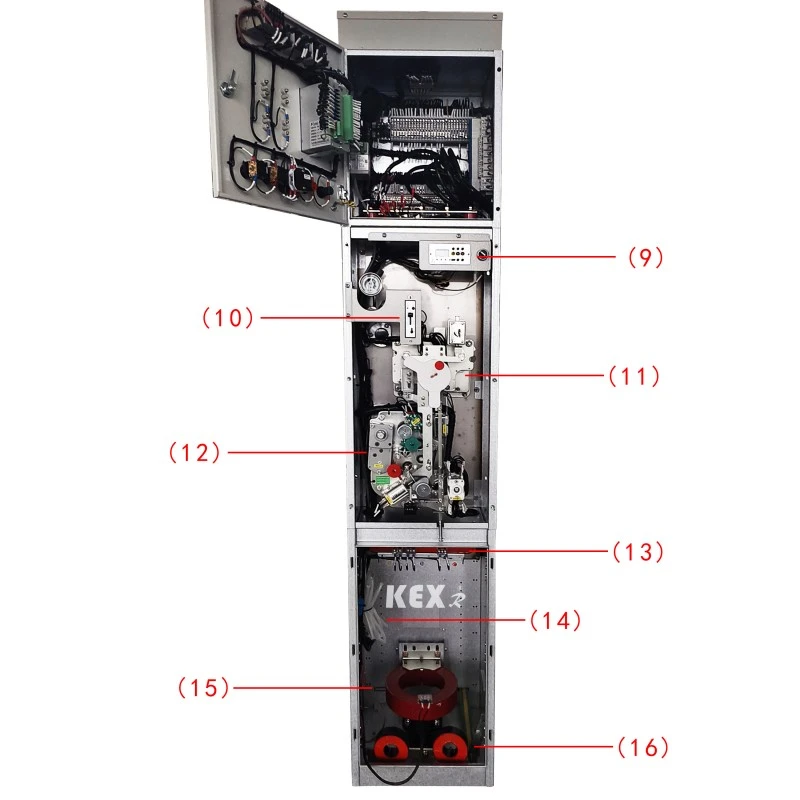

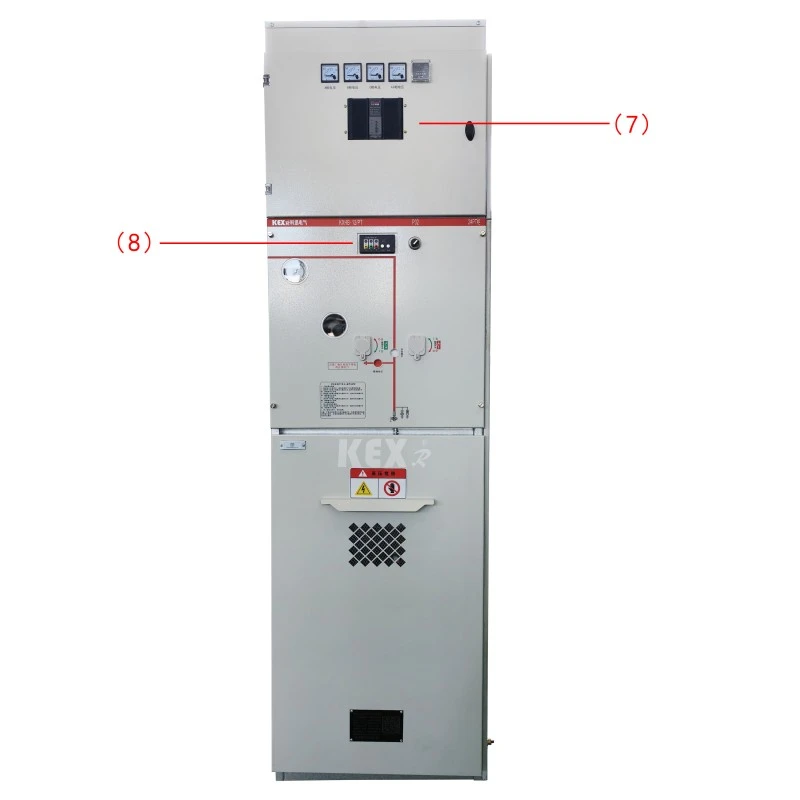

Components

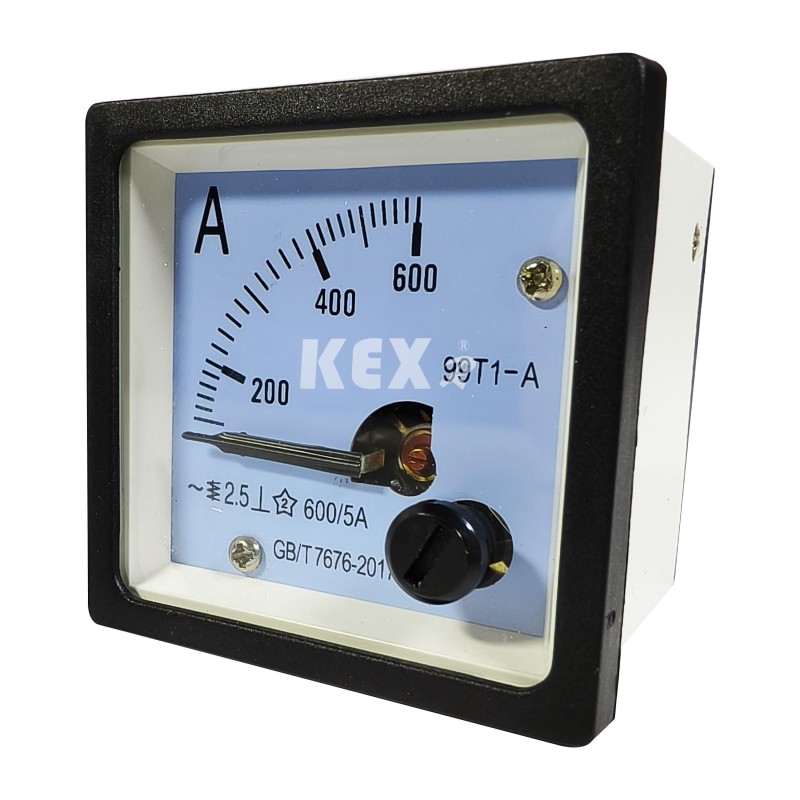

1.Ammeter

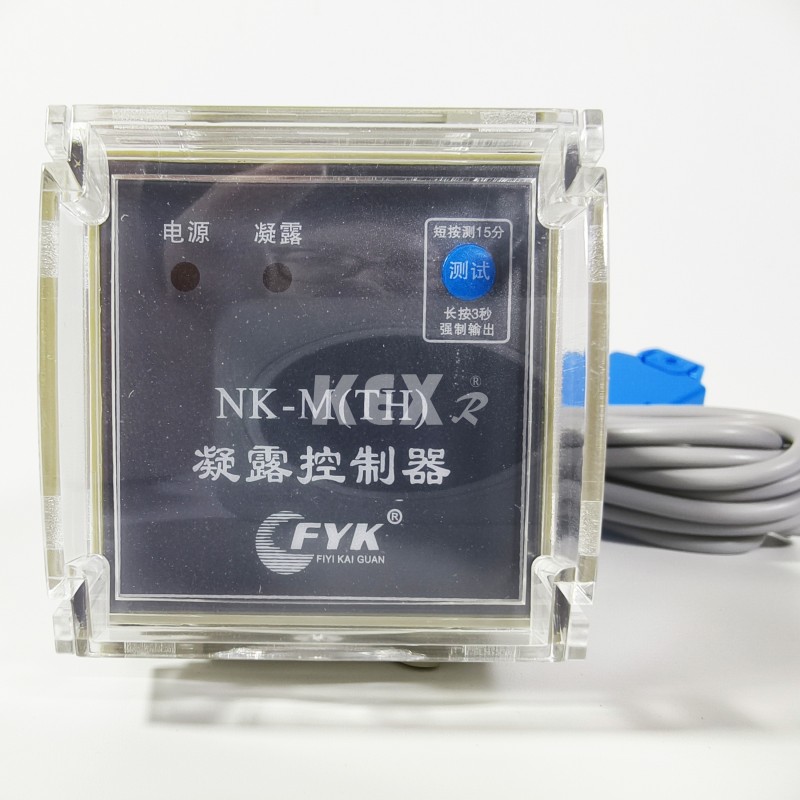

2.Condensation controller

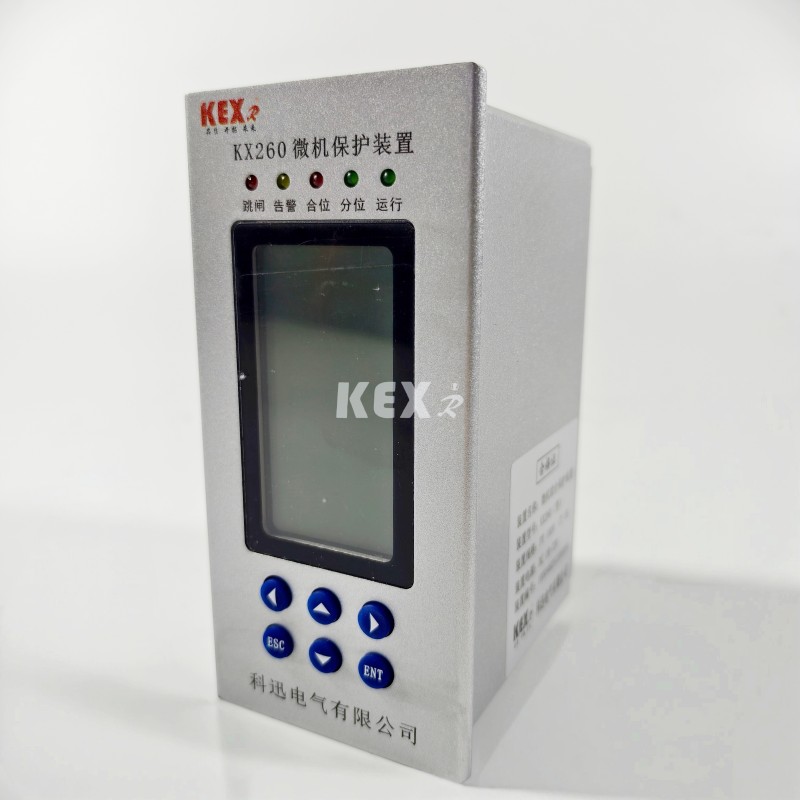

3.Microcomputer praesidio fabrica
4. Puga pyga

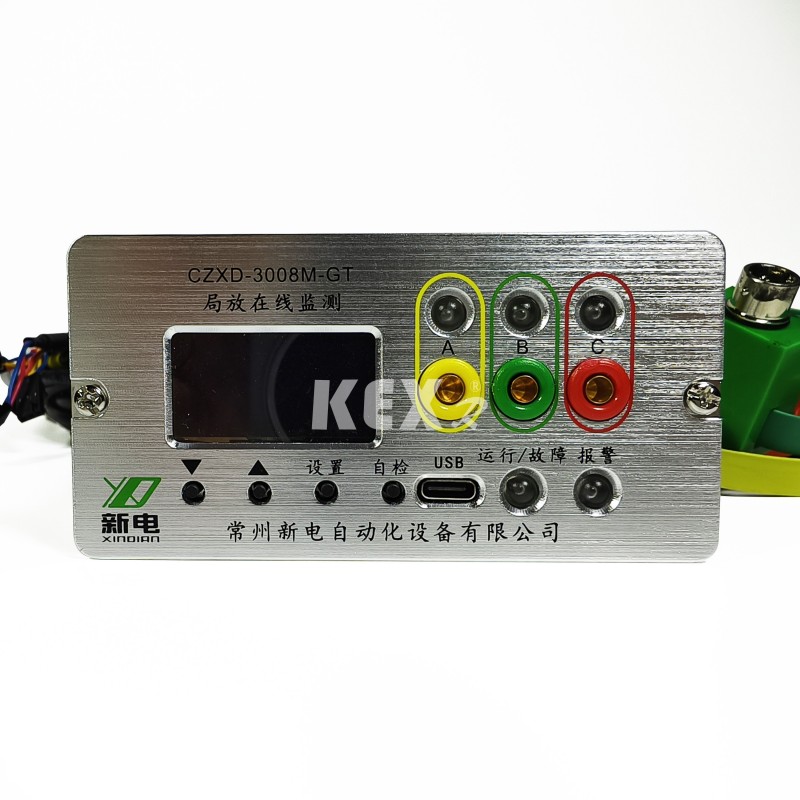

5.Partial missionem detector

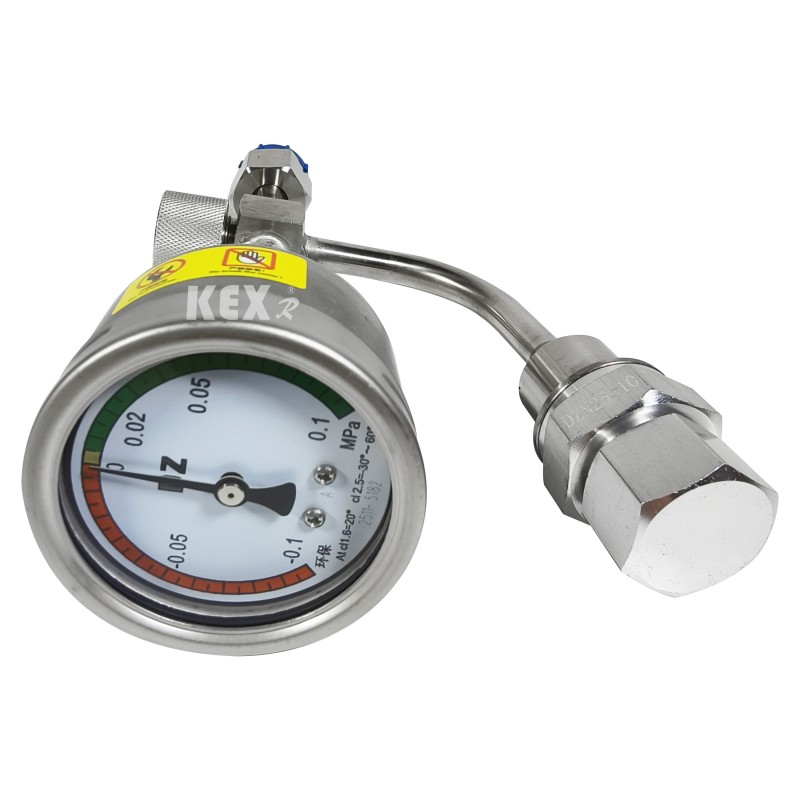

6.Barometer

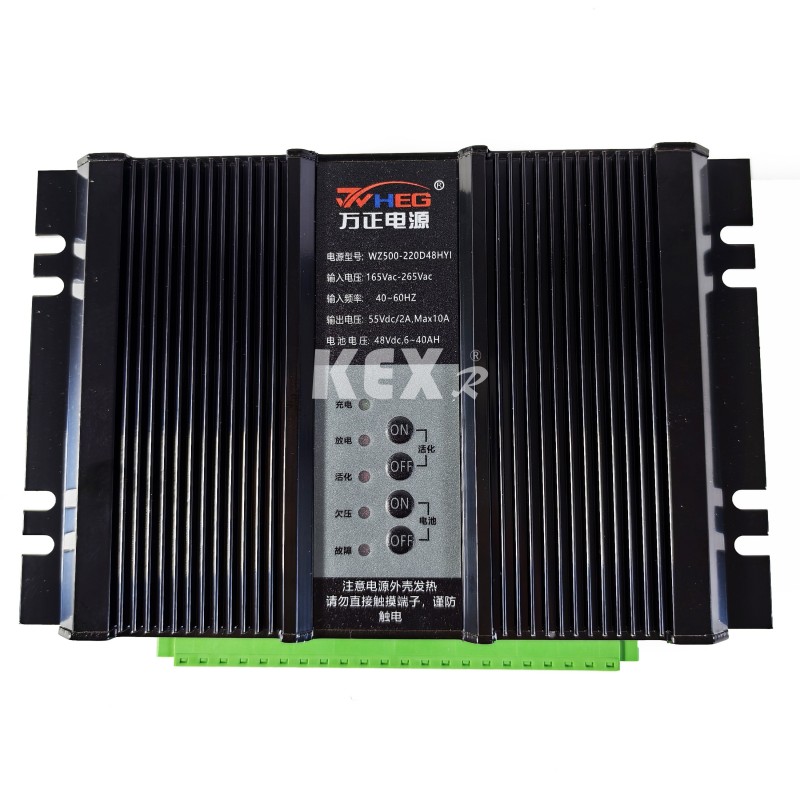

7.Power copia

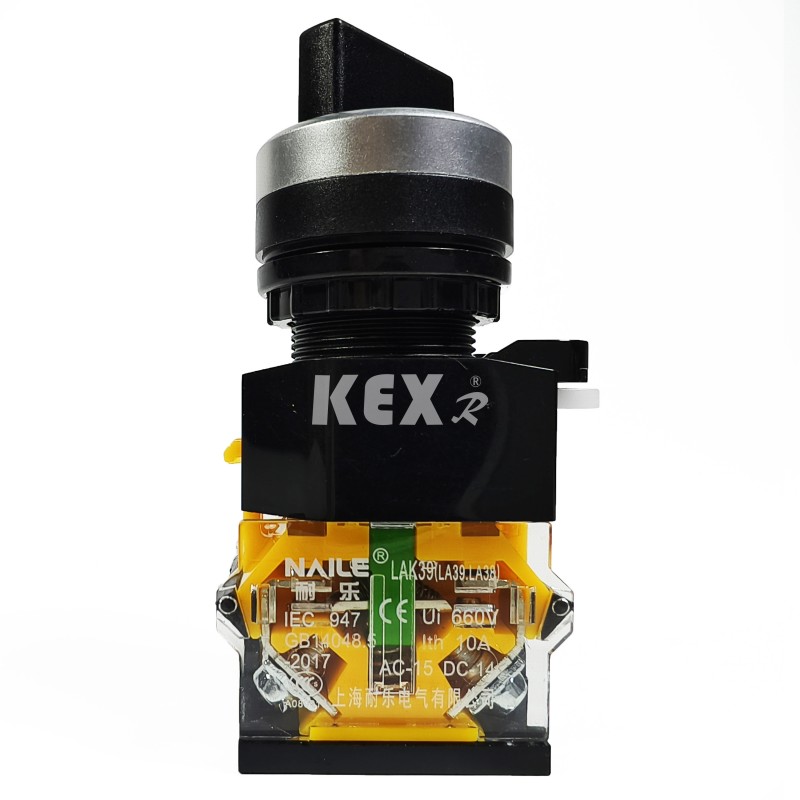

8. Pro munere sibi

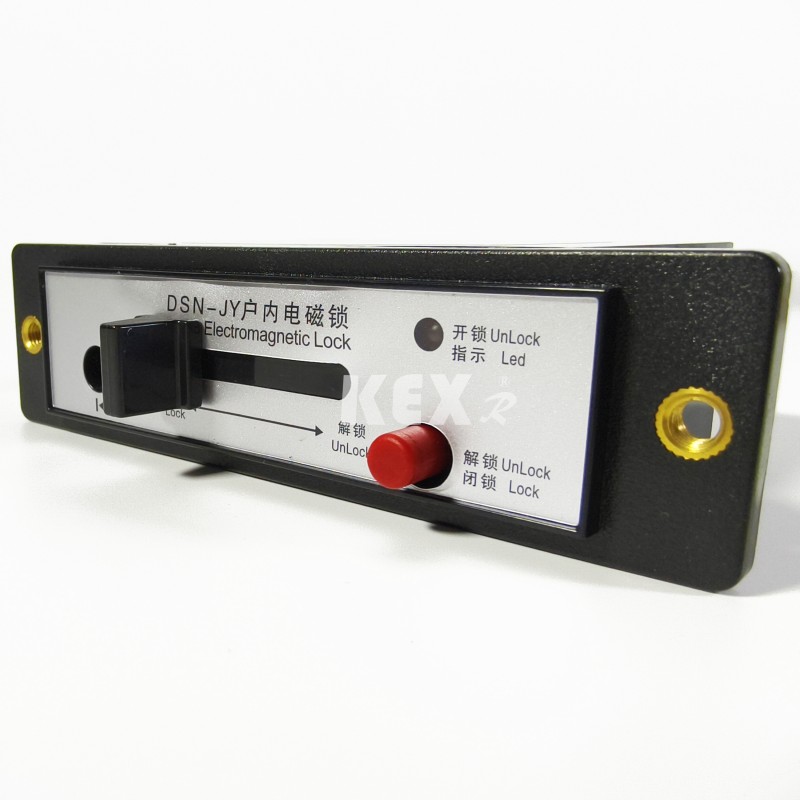

10.Electromagnetic cincinno

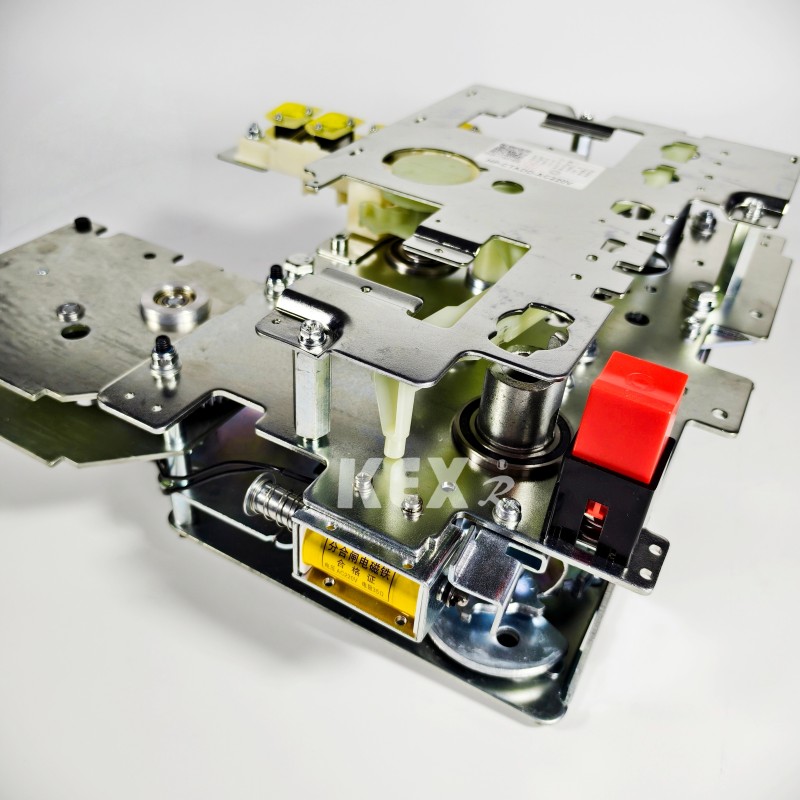

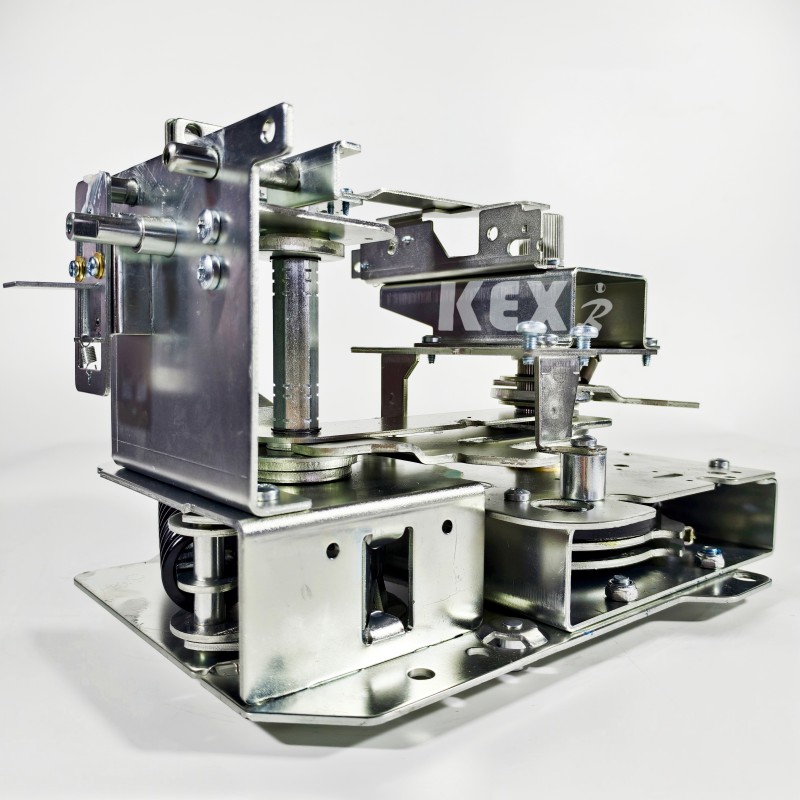

11. Manual operating mechanism
12.Electric operating mechanism

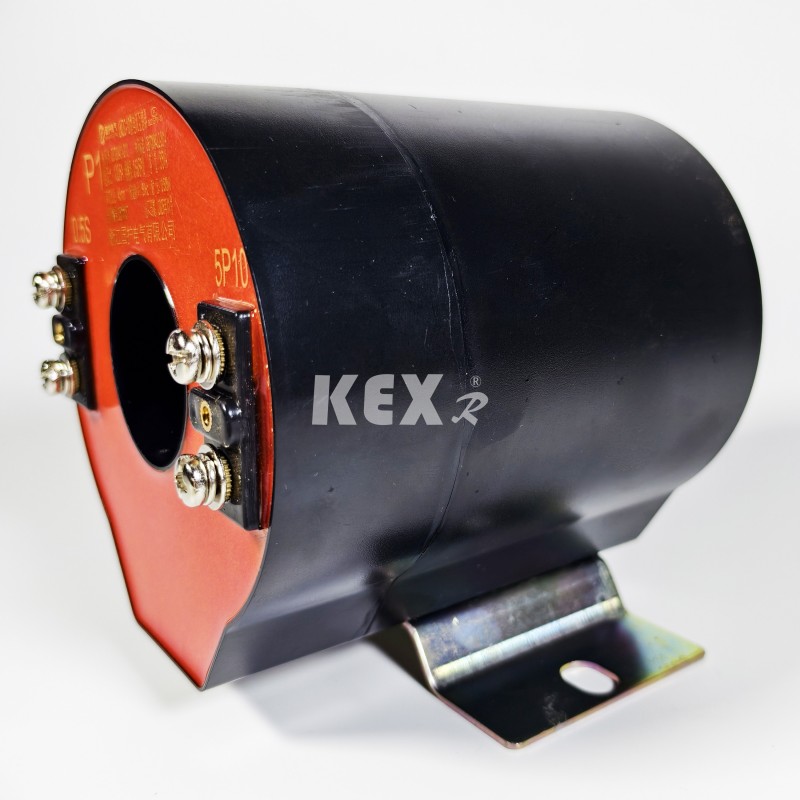

16. CT

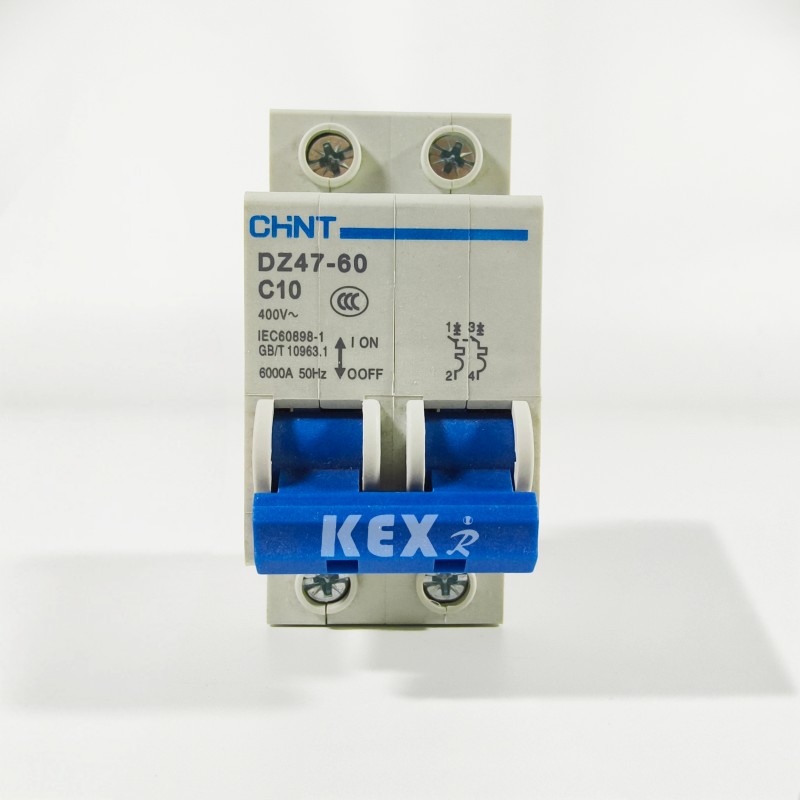

17.MCB

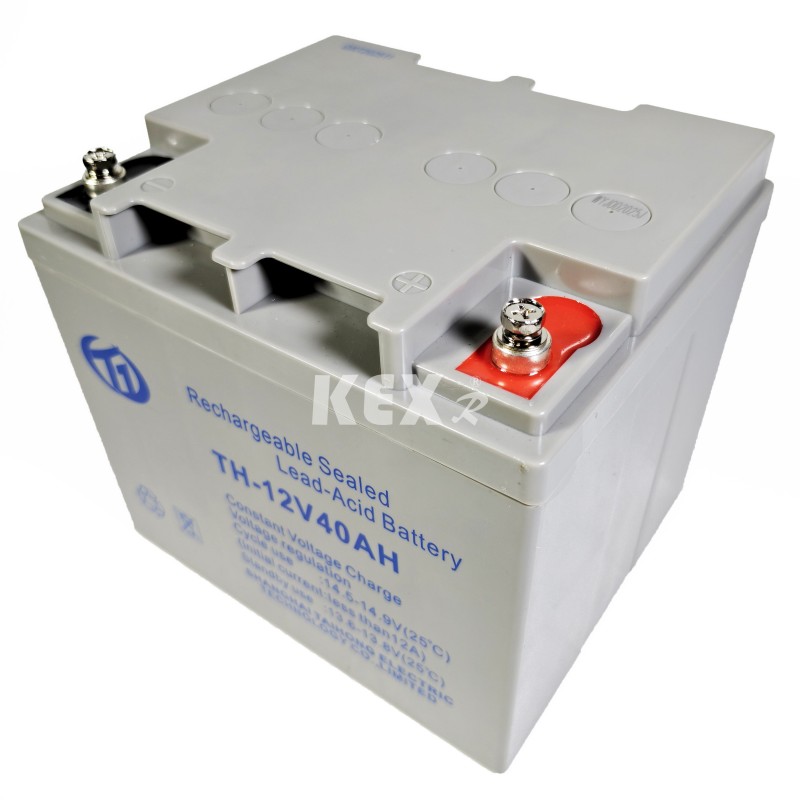

18.storage altilium

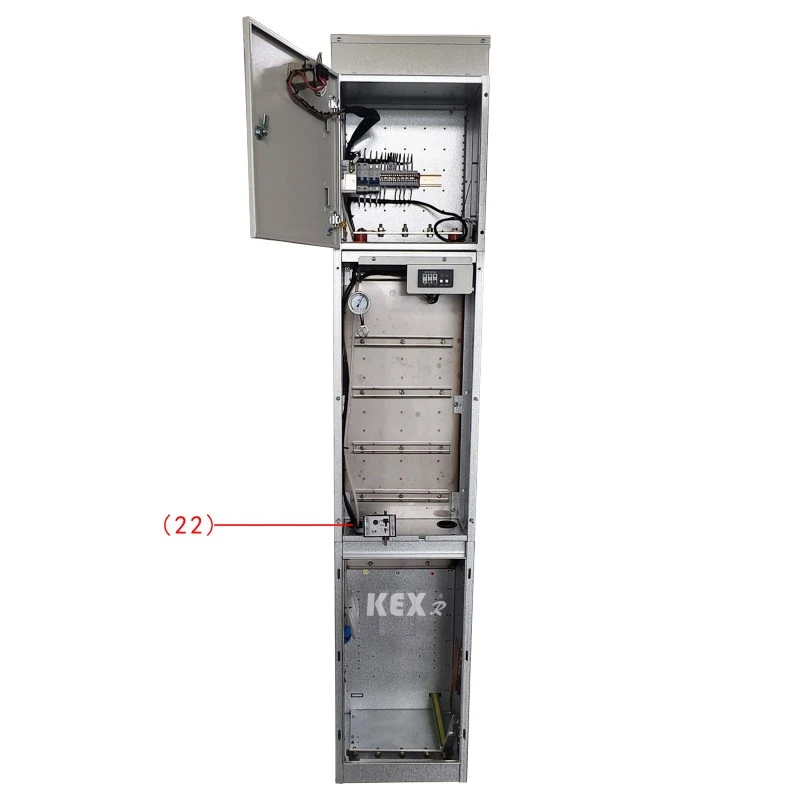

20. Cable obturaculum
Conditiones usus
Temperature -25~45℃
Max temperies cotidianus: 35℃
IP degree：Garded sigillum corporis IP67, putamen arcae IP4x switch
◆ In aere circumfuso aereum gasorum insulatum switchgear armarium environmental amicabile non debet manifesto contaminari gasis et vaporibus aquae combustibilibus mordax.
Non est frequens tremor violentus locus, et asperitas designandi sub duris partibus variis exigentiis occurrit.
signa
KXHB-12 genus Environmental amica gas insulata switchgear scrinium occurrit signis infra
◆ Communia technicae GB/T 1022 signa pro alta intentione switchgear et controlgear. ◆ GB/T39063640.5kV AC metallo switchgear et instrumento instrumenti incluso.
GB/T1985 High-voltage AC solitudinem switch ac grounding switch
GB/T38043.6-40.5kV AC summus intentione onus switch
GB/T1984 AC Circuitus summus intentione ruptor
GB/T4208 IP testae codicem praesidium gradu
GB/T7354 Partial Officina Mensurae
GB/T311.1 Coordinatio Insulationis Pars I: Definitio, Principia et Regulae
Technical parametri mensa Environmental amica gas insulatas switchgear scrinium .
Circuit ruptor scrinium
|
Item |
Unitas |
Data |
|||
|
Ratum Voltage |
KV |
12 |
|||
|
Rated Frequency |
HZ |
50 |
|||
|
Rated insulata gradu |
1Min opus frequency sustinere Voltage |
Ad tempus ad tempus groud， |
KV |
42 |
|
|
Frange |
48 |
||||
|
Accensus impetus sustinere voltage（apicem） |
Ad tempus ad tempus groud， |
KV |
75 |
||
|
Frange |
85 |
||||
|
1min potentia frequency voltage auxiliorum sustinere / imperium circuit (ad terram) |
KV |
2 |
|||
|
Ratum Current |
A |
630 |
|||
|
Rated breve terminum sustinere current valorem virtualis |
Pelagus circuitu / Earthing switch |
KA |
25/4s |
||
|
Earthing circuitu |
KA |
21.7/4s |
|||
|
Rated apicem sustinere current |
Pelagus circuitu / Earthing switch |
KA |
63 |
||
|
Earthing circuitu |
KA |
54.5 |
|||
|
Ratum est brevis ambitus interrumpentis currentis et temporum |
KA/Time |
25/30 |
|||
|
Ratum ambitus brevis currentis claudendi (apicem) |
KA |
63 |
|||
|
Rated cable increpans confractus current |
A |
25 |
|||
|
Rated operating series ruptor O-0.3s-CO-180s-CO |
|
|
|||
|
Mechanica vita |
Ruptor/Disconnector |
Tempus |
10000/3000 |
||
|
IP gradum |
Signati arca |
|
IP67 |
||
|
Testa Switchgear |
|
IP4X |
|||
|
Gas voltage |
Rated gas stultum gradu (20℃, METIOR voltage) |
Mpa |
0.02 |
||
|
Rated gas Min munus campester (20℃, METIOR voltage) |
Mpa |
0 |
|||
|
Obsignandi observantia; |
Annua rate lacus |
%/Anno |
≤0.05 |
||
Load switch arca
|
Item |
Unitas |
Data |
|||
|
Ratum Voltage |
KV |
12 |
|||
|
Rated Frequency |
HZ |
50 |
|||
|
Rated insulata gradu |
1Min opus frequency sustinere Voltage |
|
KV
|
|
|
|
|
|
||||
|
Accensus impetus sustinere voltage（apicem） |
|
KV
|
|
||
|
|
|
||||
|
1min potentia frequency voltage auxiliorum sustinere / imperium circuit (ad terram) |
KV |
2 |
|||
|
Ratum Current |
A |
630 |
|||
|
Rated breve terminum sustinere current valorem virtualis |
Pelagus circuitu / Earthing switch |
KA |
25/4s |
||
|
Earthing circuitu |
KA |
21.7/4s |
|||
|
Rated apicem sustinere current |
Pelagus circuitu / Earthing switch |
KA |
63 |
||
|
Earthing circuitu |
KA |
54.5 |
|||
|
Ratum ambitus brevis currentis claudendi (apicem) |
Onus switch / Earthing switch |
KA |
63 |
||
|
Rated activae onus interpellandi current |
A |
630 |
|||
|
Rated clausa-loop interpellandi current |
A |
630 |
|||
|
V% Rated active onus interpellandi current |
A |
31.5 |
|||
|
Rated cable increpans confractus current |
A |
10 |
|||
|
Rated activae onus confractus temporibus |
Tempus |
100 |
|||
|
Culpa terrae current fractionis |
A/Tempus |
31.5/10 |
|||
|
The current of lines and funes incurrens hians sub conditione culpae. |
A/Tempus |
17.4/10 |
|||
|
Mechanica vita |
Ruptor/Disconnector |
A/Tempus |
10000/3000 |
||
|
IP gradum |
Signati arca |
|
IP67 |
||
|
Testa Switchgear |
|
IP4X |
|||
|
Gas voltage |
Rated gas stultum gradu (20℃, METIOR voltage) |
Mpa |
0.02 |
||
|
Rated gas Min munus campester (20℃, METIOR voltage) |
Mpa |
0 |
|||
|
Obsignandi observantia; |
Annua rate lacus |
%/Anno |
≤0.05 |
||

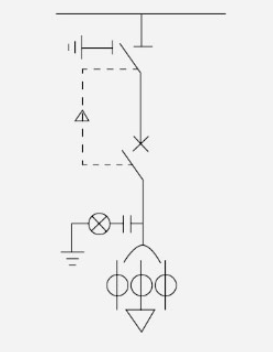

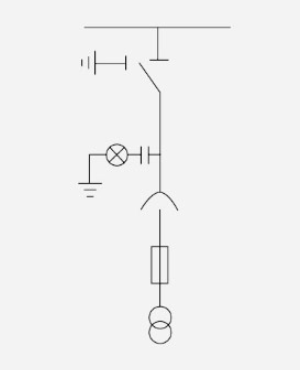

scrinium configuratione ratio

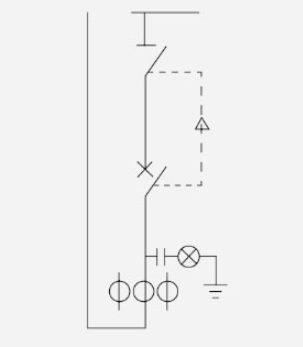

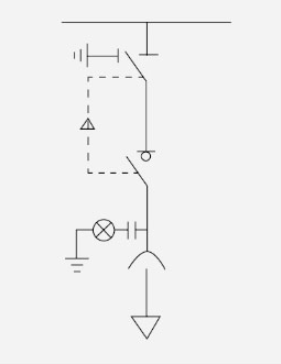

Schema 1
CL650mm
Basic forcia
Load switch
Duo-Statio solitudinem Switch

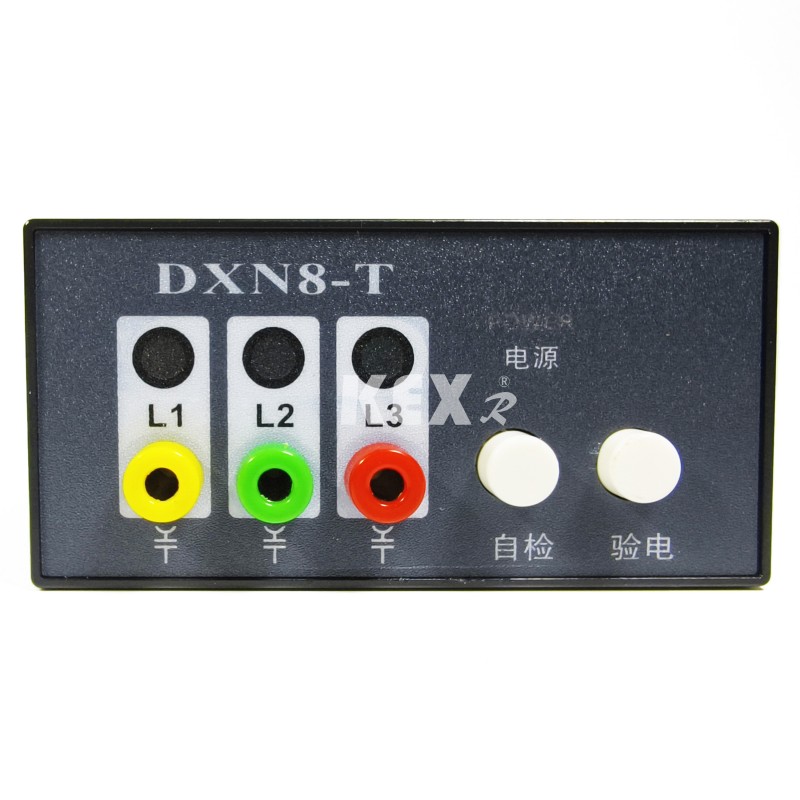

Live ostentationem meter
Latin Busbar
Operation manubrium
Contactus Busbar
libitum accessiones
Electric operating mechanism
Digital ostentationem instrument
DC potentia copia electro cincinno monstratorem instrumenti
Tres in duobus mechanica interlocking
On-line vigilantia comprehensor Minimum voltage cubiculi
Digital ostentationem instrument
Passive praesidium
-Elevating sede
Rectifier modulus
Low voltage cubiculi
Duo in uno mechanica interlock fulgur arrester
DC potentia copia (12h-24Ah) regula instrumenti electro cincinno elevato sede

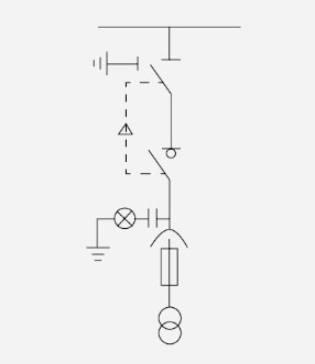

PTC500mm
Basic forcia
Load switch
"Tres-statio disconnector vexillum bus operating ostentationem vivere"
Tractare intentione TRANSFIGURATOR
PT conflata tube

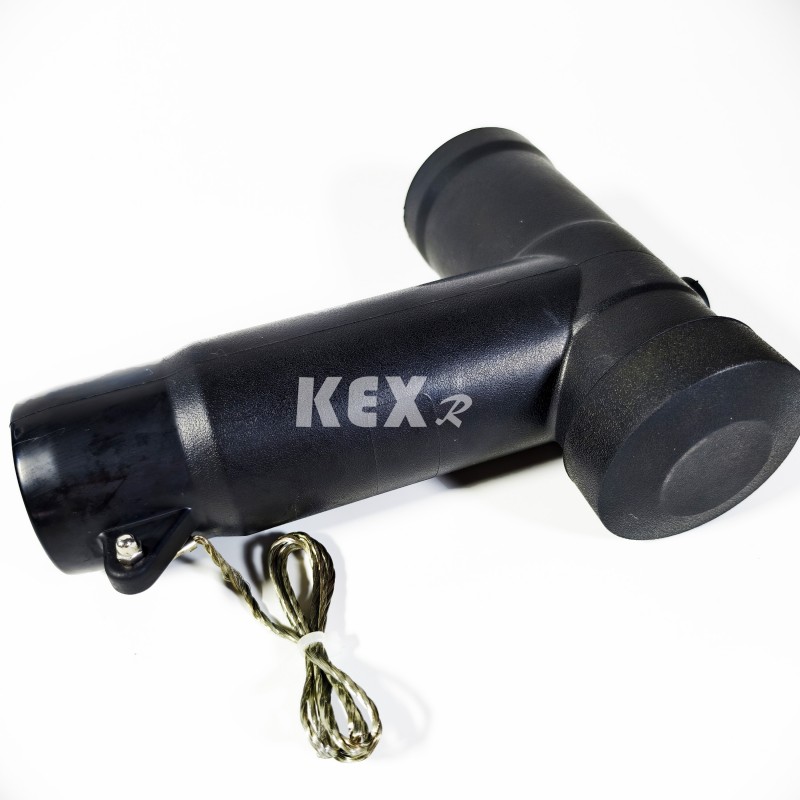

▶ Cubitus obturaculum (including cable)
libitum accessiones
Electric operating mechanism
Digital ostentationem instrument
DC potentia copia electro cincinno monstratorem instrumenti
Tres in duas mechanica interlocking On-line vigilantia arrester
Low voltage cubiculi
Digital ostentationem instrument
Passive praesidium
Elevans moduli sedem Rectifier
Low voltage cubiculi
Duo in uno mechanica interlock vasa
DC potentia copia (12h-24Ah) indicator instrumentum electro cincinno
-Elevating sede
PTi500mm
Basic forcia
Tres-statio solitudinem switch
Ostentationem Charged
Latin bus
Operating manubrium
Voltage TRANSFIGURATOR
PT conflata tube
▶ Cubitus obturaculum (including cable)
libitum accessiones
Electric operating mechanism
Digital ostentationem instrument
DC potentia copia electro cincinno monstratorem instrumenti
Tres in duobus mechanica interlocking
-On-linea magna comprehensor
Low voltage cubiculi
Digital ostentationem instrument
Passive praesidium
-Elevating sede
Rectifier modulus
Low voltage cubiculi
Duo in uno mechanica interlock arrester
DC potentia copia (12h-24Ah) indicator instrumentum electro cincinno
-Elevating sede
PT 500mm
Basic forcia
Ostentationem Charged
Latin bus
Voltage TRANSFIGURATOR
PT conflata tube
▶ Cubitus obturaculum (including cable)
libitum accessiones
Electric operating mechanism
Digital ostentationem instrument
DC potentia copia electro cincinno monstratorem instrumenti
Tres in duobus mechanica interlocking
-On-linea magna comprehensor
Low voltage cubiculi
Digital ostentationem instrument
Passive praesidium
-Elevating sede
Rectifier modulus
Low voltage cubiculi
Duo in uno mechanica interlock arrester
DC potentia copia (12h-24Ah) indicator instrumentum electro cincinno
-Elevating sede
PTS500
Basic forcia
Voltage TRANSFIGURATOR
PT conflata tube
▶ Cubitus obturaculum (including cable)
libitum accessiones
Fulmina comprehensor
-On-linea magna comprehensor
DC potentia copia (12h-24Ah)
Low voltage cubiculi monstratorem instrumenti
Digital instrumentum electro cincinno ostentationem
-Elevating sede

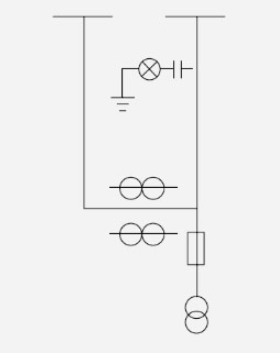

M 650mm
Basic forcia
Ostentationem Charged
Longum et brevem bus
Translatio bus
Voltage TRANSFIGURATOR
PT conflata fistula dosing tank
Voltage TRANSFIGURATOR
libitum accessiones
Low voltage cubiculi monstratorem instrumenti
Digital instrumentum electro cincinno ostentationem
-Elevating sede
Temperate et humiditatis controller
Nota: Si transitum solitarium positivum ante PT additur, latitudo scrinii ad 1000mm mutanda est, et aliae dimensiones immutatae manent.
Schema 2
C 420mm
Basic forcia
Tres-statio solitudinem switch
Ostentationem Charged
Latin bus
Operating manubrium
Load switch
libitum accessiones
Electric operating mechanism fulgur arrester
Comprehensive cautionum
Digital ostentationem instrument
DC potentia copia electro cincinno
Nulla series TRANSFIGURATOR
Fault indicator (cum temperatus mensura) monstratorem instrumentum On-linea magna comprehensor
Passive praesidium
-Elevating sede
Rectifier modulus
-Per-core current TRANSFIGURATOR
Fault indicator EKL-4
Low voltage cubiculi
Duo in uno mechanica interlock
Incoming linea grounding densis fabrica
Tres in duobus mechanica interlocking
Cable accessiones
V 420mm
Basic forcia
3 situ disconnector
Ostentationem Charged
Latin busbar
Operation manubrium
Circuit ruptor
CT
libitum accessiones
Electric operating mechanism
Dodge fabrica
Comprehensive cautionum
Digital ostentationem instrument
DC potentia copia electro cincinno
Nulla series TRANSFIGURATOR
Fault indicator (per temperatus mensura) regula instrumenti
-On-linea magna comprehensor
Passive praesidium
-Elevating sede
Rectifier modulus
-Per-core current TRANSFIGURATOR
Fault indicator EKL-4 Low intentione cubiculi
Duo in uno mechanica interlock
Incoming linea grounding densis fabrica
Tres in duobus mechanica interlocking
Cable accessiones
V 650mm
Basic forcia
Duo-statione solitudinem switch
Ostentationem Charged
Latin bus
Operating ansam circuitu ruptor
Current TRANSFIGURATOR
Coniungens bus
libitum accessiones
Electric operating mechanism
Comprehensive cautionum
Low voltage cubiculi
Duo in uno mechanica interlock
Tres in duobus mechanica interlocking
DC potentia copia regula instrumenti
Digital ostentationem instrument
-Elevating sede
Passive praesidio moduli rectifier
Electro cincinno

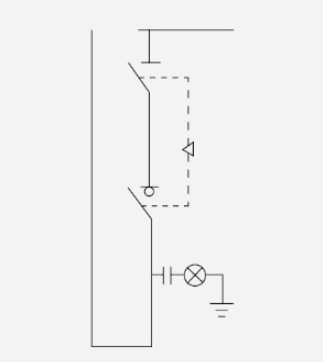

Schema 3
DI 420mm
Basic forcia
Ostentationem Charged
Latin busbar
libitum accessiones
Cable accessiones comprehensor
-On-linea magna comprehensor
Fault indicator EKL-4 culpa indicator (per temperatus mensura) Electro cincinno
-Elevating sede
DI 420mm
Basic forcia
Ostentationem Charged
Latin busbar
Operation manubrium
2 situ disconnector
libitum accessiones
Low voltage cubiculi
Duo in uno mechanica interlock
Tres in duobus mechanica interlocking
Electro cincinno elevatio sedes

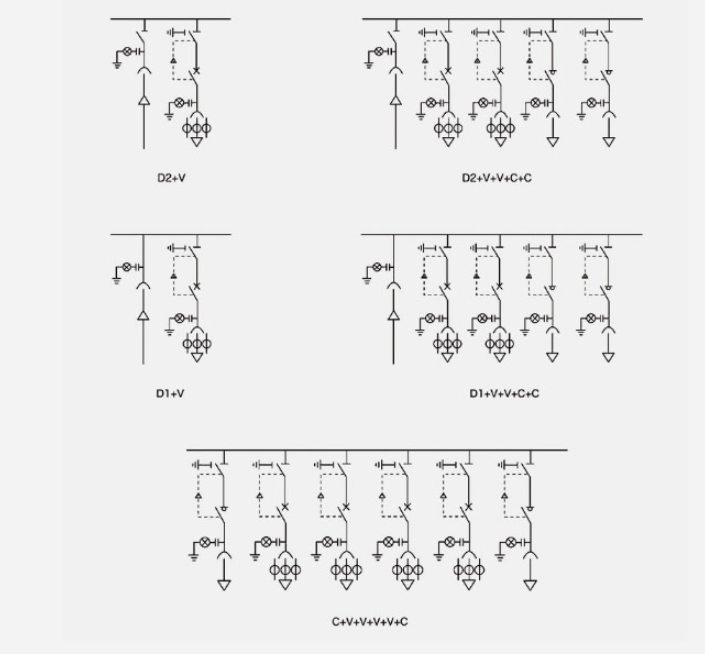

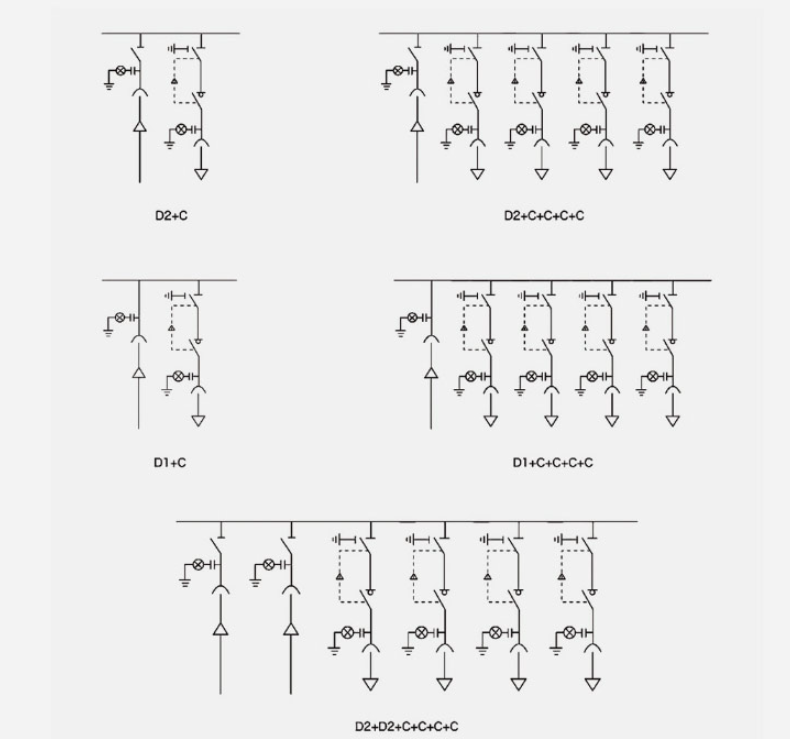

-Typical ratio compositum I
Nota: Praedicta compositio typica schema referentia variis modis componi potest secundum necessitates utentium.

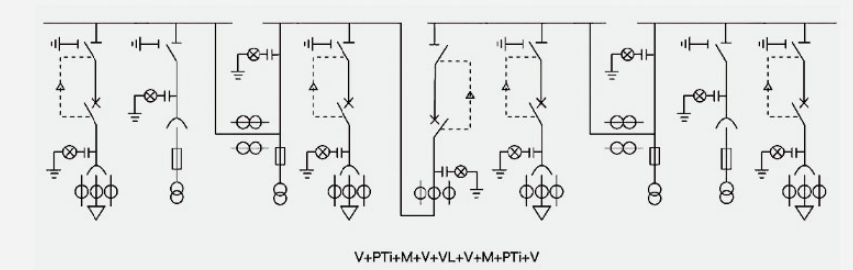

Typical ratio coniunctio 2
Nota: Praedicta compositio typica schema referentia variis modis componi potest secundum necessitates utentium.
ATS justo ratio
Switch operating instructiones

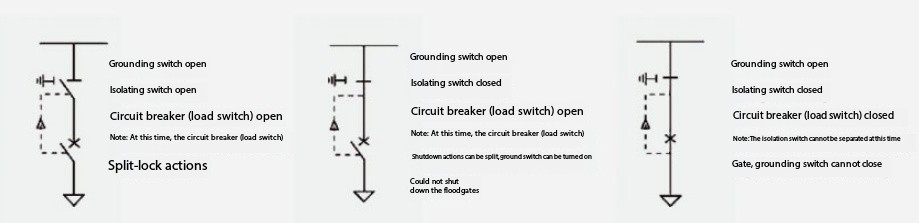

Commutatio positio, status et interlock
Operatio gradus
Potentia transmission：Hang (close) portae superiores et inferiores cum ruptor circuitionis (onere switch) → Fundatio switch cum solitario switch → Circuitus ruptor (onere switch) cum potentia transmissionis perficitur.
Potestas cut：Breker (onere switch) → disiunctio → aggeris switch → ruptor (onus switch) exoneratur (aperitur) et ianua denigrata est.
Installation instructions

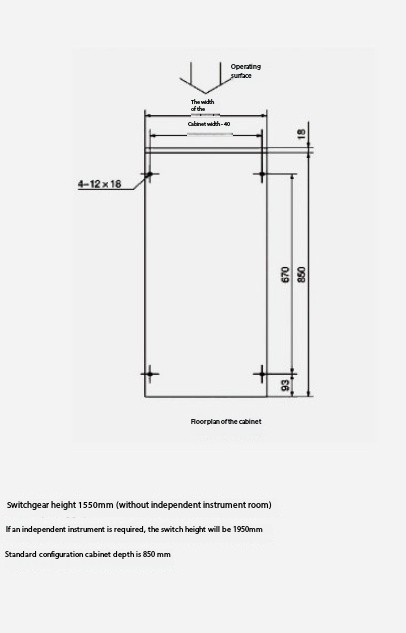

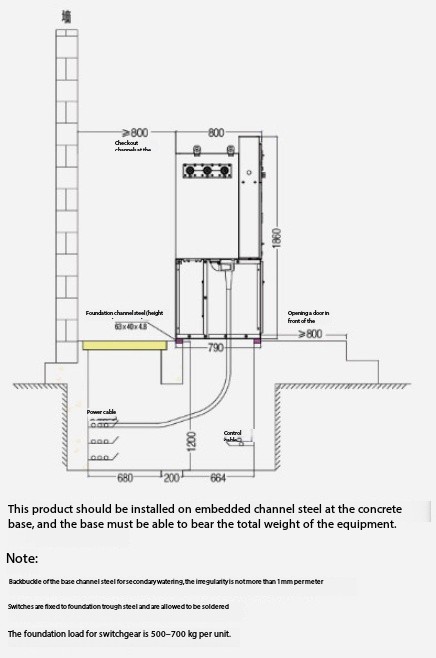

-Fundatio et altiore dimensionibus
-Cabinet ac altiore institutionem dimensionum
