Armor-vestimentis shifting switch apparatu

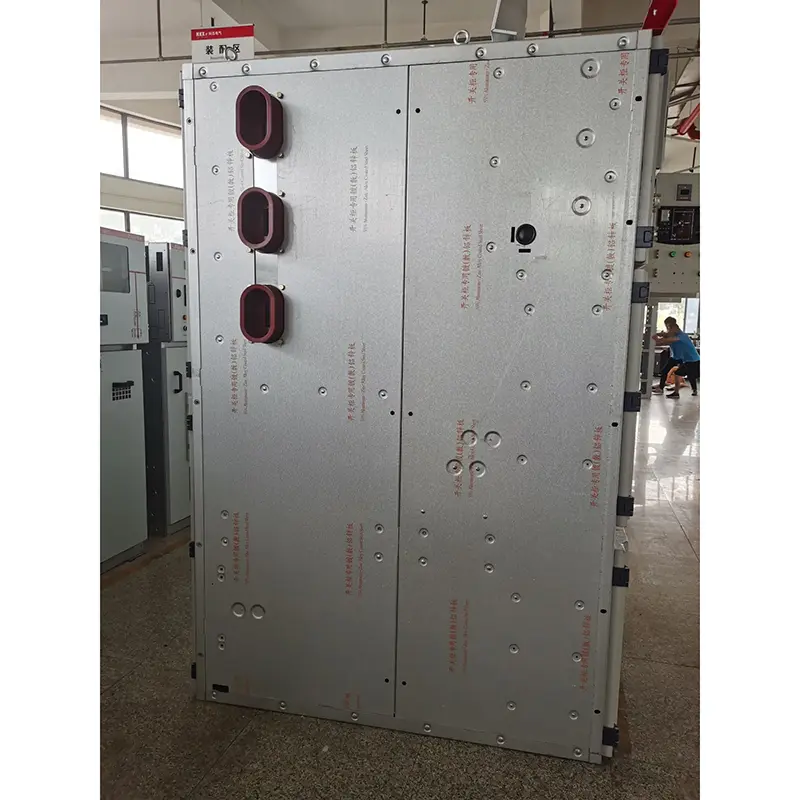

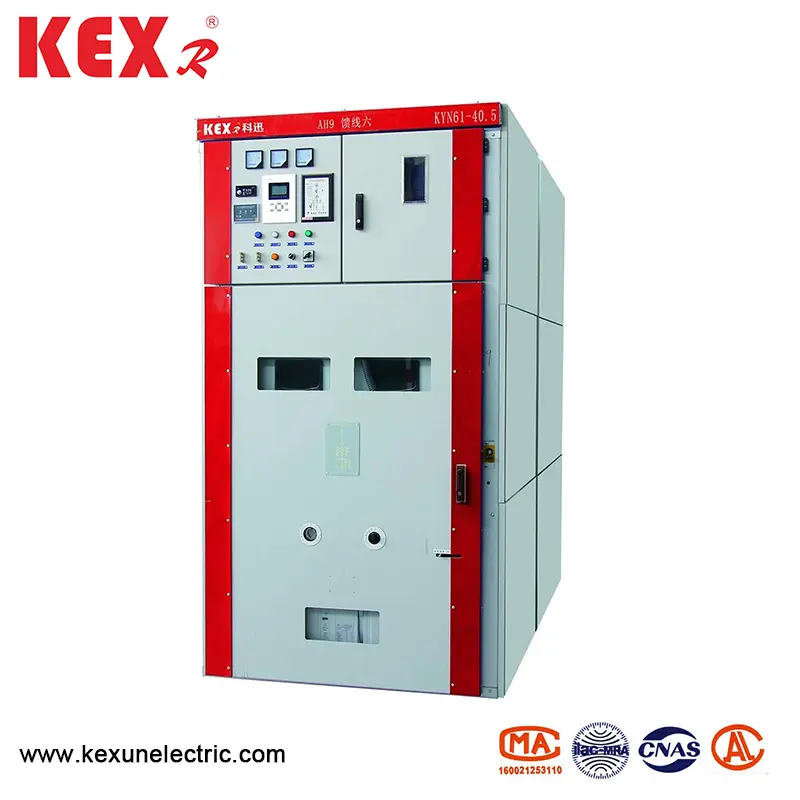

KYN61-40.5, specially produced by Kexun in China supplier, is an Armor-clad Shifting Switch Equipment, which is suitable for medium and high voltage power systems with 40.5kV voltage level, and is mainly used in power distribution of substations, industrial and mining enterprises and new energy fields. Comparari cum medium voltage apparatu, et armis, vestitos shifting switch apparatu habet characteres maioris volumine et fortior velit.

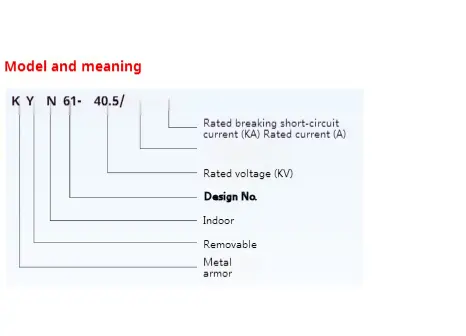

Model: Kyn61-40.5
Notam: Kexr
Model: Kyn61-40.5
Notam: Kexr
● Summary
Kyn61-40.5 armis, induta shifting switch apparatu (hereinafter referred to as apparatu) est completum umbraticis distribution fabrica cum tres-phase AC 50Hz et rated voltage of 40.5kv. Sicut potentia plant, substantia et industriae et metalla conatibus accipere et distribute electrica industria, potest control, protegat et deprehendere circuits, et potest etiam in locis cum crebris. Hoc switch apparatu conformis ad GB / T11022-1999, GB3906-2006 et DL404-1997.
● Technical parametris pro se component de Kyn61-40.5 Type armis-vesti shifting switch apparatu
◆ vacuum switchgearar
|
Numerus |
Item |
Unitas |
Notitia |
|
1 |
Rated voltage |
KV |
40.5 |
|
2 |
Current Rated |
A |
MCCL, MDC, MM |
|
3 |
Rated frequency |
HZ |
50 |
|
4 |
Rated brevi-term resistent current |
In |
20,25,31.5 |
|
5 |
Rated Peak resistite current |
In |
50,63,80 |
|
6 |
Rated working frequency resistere voltage |
KV |
XCV / 1min |
|
7 |
Rated luminatione impetus sustinere voltage |
KV |
185 |
|
8 |
Rated Short-Circuit Tempus |
S |
4 |
|
9 |
IP gradu |
|
Ip3x |
◆ Vacuum Circuit Breaker
|
Numerus |
Item |
Unitas |
Notitia |
|
1 |
Rated voltage |
KV |
40.5 |
|
2 |
Rated frequency |
HZ |
50 |
|
3 |
Rated working frequency resistere voltage |
KV |
XCV / 1min |
|
4 |
Rated luminatione impetus sustinere voltage |
KV |
185 |
|
5 |
Current Rated |
A |
MCCL, MDC, MM |
|
6 |
Rated brevi-term resistent current |
In |
20,25,31.5 |
|
7 |
Rated Short-Circuit conteram current |
In |
20,25,31.5 |
|
8 |
Rated Short-Circuit Tempus |
MS |
30≤T≤60 |
|
9 |
IP gradu |
MS |
50.≤T≤100 |
|
10 |
Tempus |
MS |
20 |
|
11 |
Claudendo tempore |
MS |
10000 |
|
12 |
Rated Short-Circuit conteram Current Tempus |
Tempus |
|
|
13 |
Mechanica vitae |
Tempus |
|
◆ vere-operated machinery
|
Item |
|
Unitas |
Notitia |
|
Rated Operating voltage |
Confractus-fregit coil |
V |
DC220 / CX AC220 / CX |
|
claudendo coil |
|||
|
Rated operating current |
Confractus-fregit coil |
A |
0,96 (220v) 1.05 (110v) |
|
claudendo coil |
|||
|
Energy Storage Motor Power |
W |
230 |
|
|
Energy repono motor rated voltage |
V |
DC220 / CX AC220 / CX |
|
|
Energy Storedit amet |
S |
≤12 |
|
● Structural characteres Kyn61-40.5 Type armis, vestitos shifting switch apparatu
Et switch apparatu est disposito secundum ad vexillum armis metallum inclusum apparatu in GB3906-1991 et Iec298. Totum apparatu ex duabus partibus apparatu et drawable pars (HandCart). Apparatu structuram convenerunt combined cum seras. Interior switch apparatu dividitur in circuitu ruptor locus, pelagus bus locus, cable locus et Nullam instrumenti locus per metallum partitionem. Tutela gradu testa pervenit IP3X et tutela gradu inter cameram est IP2X, et metallum structural membra sunt certo solutam. Quisque cellula de principalis loop ratio habet pressura release channel pro independens exhaurit.
◆ testa et partitio
Testa et partitio armis-vestimentis shifting switch apparatu sunt tincidunt per frigus-advolvit ferro laminam post processionaliter et tetendit a cnc machina instrumenta. Ergo congregati apparatu potest ut uniformitatem structurarum dimensionum. Armor-vestimentis shifting switch apparatu dividitur in circuitu ruptor locus, pelagus bus locus, cable locus et Nullam instrumenti locus, singulis pars separata a metallum partitionem.
◆
HandCart potest dividitur in circuitu Breaker HandCart, voltage Transformer HandCart, Metering HandCart, Solante HandCart, etc. Omnis HandCart eadem figura et magnitudine et handcarts in eodem modo convertuntur. Et HandCart est test / segregatione situ et opus situ in apparatu, et quisque situ instructum cum interlocking fabrica ut ad handcart non movere casualiter, cum sit in duobus positionibus.

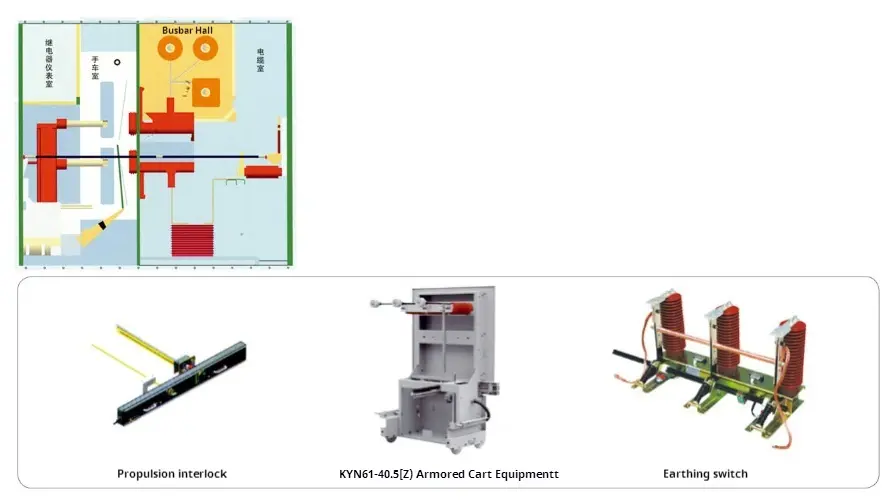

◆ Circuit ruptor cellula
A specifica semita est installed in circuitu Breaker cellula pro HandCart movere. Cum circuitus movet inter test situm et opus situ, segregatio valvae automatically opens et claudit, quod ensures, quod virgam non tangit causam. HandCart potest operari cum apparatu ostium clausit et positio HandCart in apparatu potest per observationis fenestram et simul, quodcunque signa in HandCart potest.
◆ bus compartment
Pelagus bus ducit ab uno armis, induta shifting switch apparatu ad alium et fixum a genere parva elit et stabilis contactus adipiscing et certum a bus manicatas cum transitu laminis laminas adiacentibus armorum. Omnes buses capere composita velit.
◆ funable cellula
PT, grounding switch, fulgur arrester et multa cables potest installed in funem locus.
◆ Rico locus
Umbraticis tabula et panel de Nullam potest instructum ad secundarium components ut imperium et tutela components, metering et display instrumenta et vivet magna Indicatores.
◆ Interlocking fabrica
Armor-vestimentis shifting switch apparatu habet reliable interlocking fabrica, quae efficaciter ensures salus operators et apparatu;
Cum grounding switch in off position, in HandCart modo moveri a test / desolatio positio opus; Et ad ostium aperietur ita ne erratis ingressum electrified intervallum. Cum HandCart est omnino extraxerunt ex apparatu, aut cum HandCart in test / segregatione loco in apparatu et Earthing switch est interlocked et reserata Earthing switch potest clausa. Cum HandCart in operatione situ, in grounding switch non claudi. Neque in fratione switch a switched per errorem, et prohibet HandCart movens ad opus situ cum grounding switch in clausa situ. Tantum cum Circuit Breaker HandCart in test / segregatione situ vel opus situ potest Circuit ruptor est operated; Praeterea, post circuitus ruptor est clausus, quod HandCart non movere, quod prohibet vivere onus a propellentibus et destructionem per circuitu Breaker per errorem. Electrical Interlocking potest installed inter Equipments.
◆ Earthing machinam
In cable locus, ibi est a VI × 50mm2 grounding bus bar, quod potest transire per adjacent artipemments et fac bonum contactus cum equis.

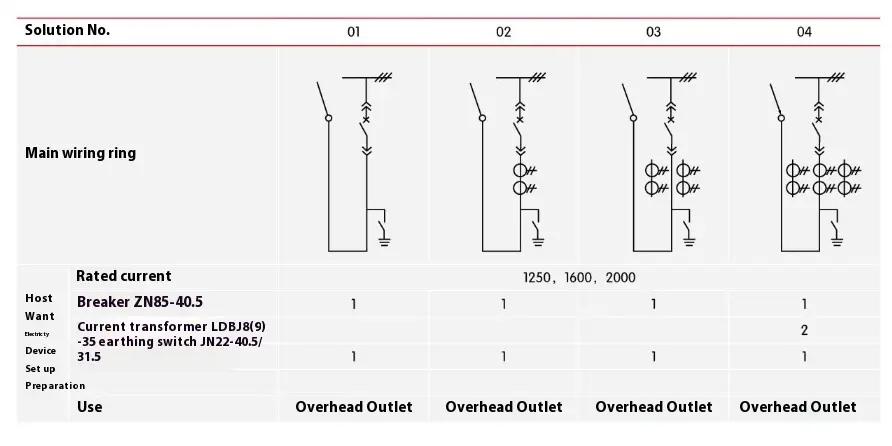

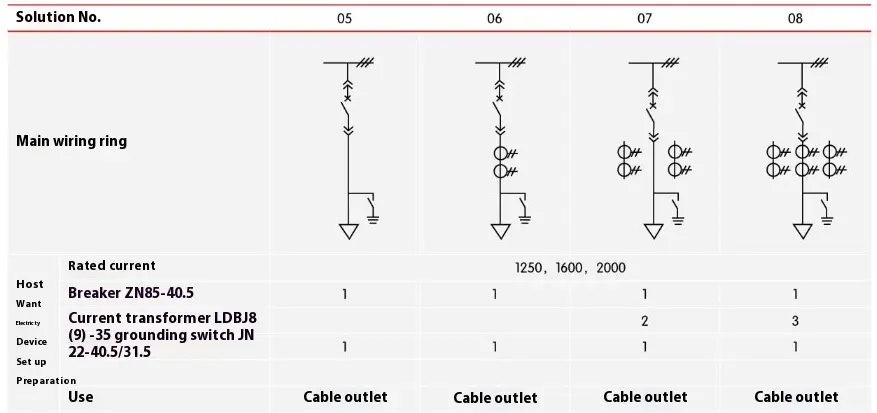

● Main Wiring ratio
Sunt XXVII communiter typical primaria wiring schemat ad armis, induta shifting switch apparatu, quod potest obviam necessitatibus users, funem ineuntes et exitu acies et mensuram, praesidium, etc. si sunt alia consultat, et metus, et cetera consulere cum manufacturer.

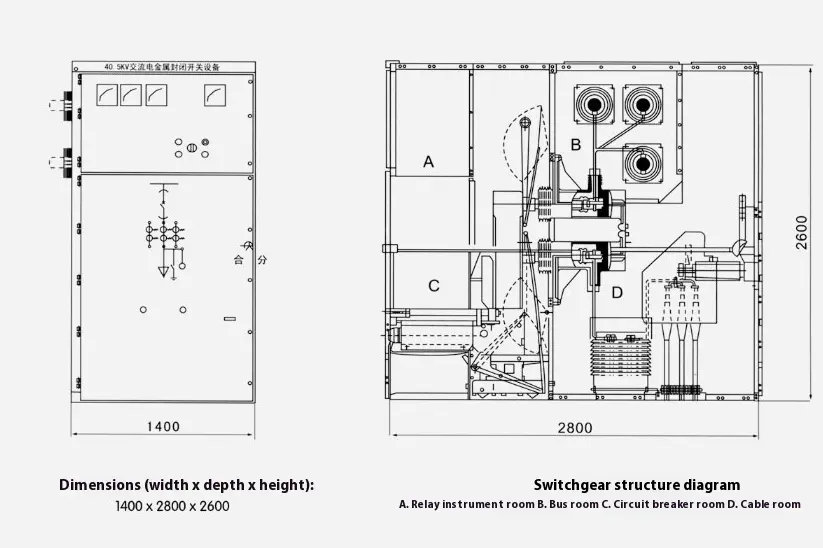

● Structural dimensiones et schematic diagram de armis, vestitos shifting switch apparatu
